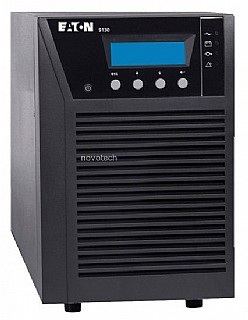

אל פסק Eaton 9130 1500VA PW9130i1500T-XL

אל פסק Eaton 9130 1500VA PW9130i1500T-XL

דגם

9130 1500VA

כללי

Topology: Online (Double Conversion)
nConfiguration: Tower
nRating (VA/Watts): 1500VA/1350W
nDiagnostics: Full system self-test
nUPS Bypass: Automatic bypass
nDimensions (H x W x D, mm) : 230 x 160 x480
nWeight (kg): 19
nRemote Emergency Power off (REPO): Emergency shutdown control through the REPO port
nEfficiency: 94% in high-efficiency mode; 90% in online mode

כניסה

Connection: (1) IEC-320-C14
nInput Cord: Schuko 10A to IEC 320-10A
nInput Voltage Range: 180-276 Vac (with load PF of 0.7)
nNominal Voltage: 220240V
nFrequency: 50/60 Hz
nFrequency Range: 4565 Hz
nNominal Current: 6.5A @230V
nBreaker Ratings: 10A

יציאה

Output Receptacles: (4) Aust. 10A
nOn Utility Voltage Regulation: ±3% of nominal
nOn Battery Voltage Regulation: ±3% of nominal
nFrequency Regulation: ±3% Hz online
nLoad Crest Factor: 3 to 1

סוללה

Battery Description: VRLA 12V/9 Ah (internal and External)
nBattery Type: Replaceable maintenance free sealed lead acid
nBattery Replacement: Hot-swappable internal batteries
nStart On Battery: Allows start of UPS without utility input

חיבורים

User Interface: Graphical LCD with blue backlight and text in English, French, German, Russian and Spanish
nLEDs: Four status-indicating LEDs
nCommunication Ports: RS-232 and USB HID port as standard
nRelay Output: Common alarm standard
nCommunications Card Slots: Optional SNMP/Web card for monitoring in SNMP-based networks, monitoring through Web browser interface. Relay card for integration to industrial environment and BMS, remote shutdown for IBM AS/400 systems

נתוני סביבה

Heat Dissipation (BTU): Line: 750, Bat: 1011
nAudible Noise: nOperating Temperature: 0C to +40C
nPerformance - Safety - EMC: CE (per IEC/EN62040-2: Emissions, Category C1; Immunity, Category C2), GS
nStorage Temperature: -20C to +40C with batteries and -25C to +55C without batteries
nRelative Humidity: 590% non-condensing

שנתיים אחריות באתר הלקוח
