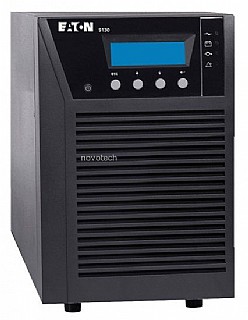

אל פסק Eaton 9130 3000VA PW9130i3000T-XL

אל פסק Eaton 9130 3000VA PW9130i3000T-XL

Topology: Online Double Conversion
Configuration: Tower
Rating (VA/Watts): 3000VA/2700W
Diagnostics: Full system self-test
UPS Bypass: Automatic bypass
Dimensions (H x W x D, mm): 325 x 214 x 410
Weight (kg): 34.5
Remote Emergency Power off (REPO): Emergency shutdown control through the REPO port
Efficiency: 94% in high-efficiency mode; 90% in online mode

כניסה

Connection: IEC-320-C20
Input Voltage Range: 180-276 Vac (with load PF of 0.7)
Nominal Voltage: 220-240V
Frequency: 50/60 Hz
Frequency Range: 45-65 Hz
Nominal Current: 13.0A @230V
Breaker Ratings: 16A

יציאה

Output Receptacles: IEC-320-C19 Aust. 15A
On Utility Voltage Regulation: ±3% of nominal
On Battery Voltage Regulation: ±3% of nominal
Frequency Regulation: ±3% Hz online
Load Crest Factor: 3 to 1

סוללה

Battery Description: VRLA 12V/9 Ah (internal and External)
Battery Type: Replaceable maintenance free sealed lead acid
Battery Replacement: Hot-swappable internal batteries
Start On Battery: Allows start of UPS without utility input

חיבורים

User Interface: Graphical LCD with blue backlight and text in English, French, German, Russian and Spanish
LEDs: Four status-indicating LEDs
Communication Ports: RS-232 and USB HID port as standard
Relay Output: Common alarm standard
Communications Card Slots: Optional SNMP/Web card for monitoring in SNMP-based networks, monitoring through Web browser interface. Relay card for integration to industrial environment and BMS, remote shutdown for IBM AS/400 systems

נתוני סביבה

Heat Dissipation (BTU): Line: 1257, Bat: 1755
Audible Noise:
Operating Temperature: 0C to +40C
Performance - Safety - EMC: CE (per IEC/EN62040-2: Emissions, Category C1; Immunity, Category C2), GS
Storage Temperature: -20C to +40C with batteries and -25C to +55C without batteries
Relative Humidity: 5-90% non-condensing

שנתיים אחריות באתר הלקוח
