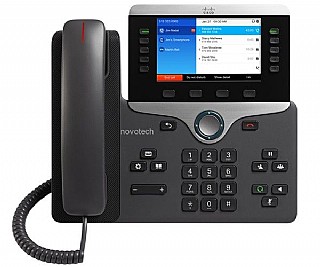

טלפון IP דגם Cisco 8851 CP-8851-K9
The Cisco® IP Phone 8851 is a business-class collaboration endpoint that combines high-fidelity, reliable, secure, and scalable voice over IP communications with Cisco Intelligent Proximity for telephony integration for personal mobile devices to support small to large enterprise businesses.
With the Cisco IP Phone 8851, you can increase personal productivity through an engaging user experience that is both powerful and easy-to-use. The IP Phone 8851 combines an attractive new ergonomic design with wideband audio for crystal clear voice communications, “always-on” reliability, encrypted voice communications to enhance security, and access to a comprehensive suite of unified communication features from Cisco on-premises and hosted infrastructure platforms. It is also supported on third party hosted call control services.
In addition, Cisco Intelligent Proximity brings the worlds of desk and mobile together for you when you are using your mobile device at the desk for your work. You can move the audio path over to the Cisco IP Phone 8851 during active mobile calls to take advantage of its superior audio acoustics. An example would be to share a conversation with a colleague who you want to listen in. This capability gives you greater flexibility and a superior user experience when at your desk.
The IP Phone 8851 also comes standard with a USB port so you can charge your smartphone when at your desk, and stay connected when away from your desk.
The Cisco IP Phone 8851 offers five programmable line keys. You can configure keys to support either multiple directory numbers or calling features such as speed dial. You can also boost productivity by handling multiple calls for each directory number using the multicall-per-line feature. Fixed-function keys give you one-touch access to applications, messaging, directory, as well as often-used calling features such as hold/resume, transfer, and conference. A five-way navigation cluster helps you transition through menus more easily. Backlit acoustic keys provide flexibility for audio path selection and switching.
Other key features of the phone follow:
● The Cisco IP Phone 8851 offers a 5-in. high-resolution (800 x 480) widescreen VGA backlit color display. Localized language support, including right-to-left on-screen text, meets the needs of global users.
● The phone supports a built-in Gigabit Ethernet switch for your PC connection.
● Support for Cisco EnergyWise™ technology makes the Cisco IP Phone 8851 more energy-efficient and ecofriendly; the phone is qualified by the Energy Star organization.
● An optional wall-mount kit is orderable as a spare part for customers seeking this capability.
● Up to two optional IP Phone 8800 Key Expansion Modules with up to 72 additional line/feature keys are supported.
● Two color options (charcoal and white) are available.
Features and Benefits
Table 1 lists features and benefits of the Cisco IP Phone 8851.
Table 1. Features and Benefits of Cisco IP Phone 8851
|
Features
|
Benefits
|
|
Hardware Features
|
|
Ergonomic design
|
● The phone offers an easy-to-use interface and provides a traditional telephony-like user experience.
|
|
Graphical display
|
● The 800 × 480, 24-bit color, 5-in. WVGA display provides scrollable access to calling features and text-based XML applications.
|
|
Handset
|
● The handset is a standard wideband-capable audio handset (connects through an RJ-9 port).
● The standard coiled cord has a custom end for concealed cable routing beneath the phone (cord length is approximately 21 in. [55 cm] coiled and up to 72 in. (183 cm) extended).
● The handset is hearing aid-compatible (HAC) and meets Federal Communications Commission (FCC) loudness requirements for the Americans with Disabilities Act (ADA). You can achieve Section 508 loudness requirements by using industry-standard inline handset amplifiers such as Walker Equipment W-10 or CE-100 amplifiers. The dial pad is also ADA-compliant.
|
|
Speaker phone
|
● A full-duplex speakerphone gives you flexibility in placing and receiving calls with hands free.For added security, the audible dual tone multifrequency (DTMF) tones are masked when the speakerphone mode is used.
|
|
Analog headset
|
● The analog headset jack is a standard wideband-capable RJ-9 audio port.
|
|
AUX port
|
● You can use an auxiliary port to support electronic hookswitch control with a third-party headset connected
to it.
|
|
USB
|
● A side USB port enhances the usability of call handling by enabling wired or wireless headsets, as well as provides up to 500-mA power output at 5V or 2.5W for smartphone charging.
|
|
Ethernet switch
|
● An internal 2-port Cisco Ethernet switch allows for a direct connection to a 10/100/1000BASE-T Ethernet network (IEEE 802.3i/802.3u/802.3ab) through a RJ-45 interface with single LAN connectivity for both the phone and a co-located PC.
● The system administrator can designate separate VLANs (IEEE 802.1Q) for the PC and phone, providing improved security and reliability of voice and data traffic.
|
|
Bluetooth
|
● Bluetooth 3.0 Enhanced Data Rate (EDR) Class 1 technology (up to 66-ft [20m] range) is supported.
● Hands-Free Profile (HFP) is supported for untethered headset connections and voice communications.
● Phone Book Access Profile (PBAP) is supported for phone book object exchange between devices.
|
|
Keys
|
● The phone has the following keys:
◦ Line keys
◦ Soft keys
◦ Back and release keys
◦ Four-way navigation and select keys
◦ Hold/Resume, Transfer, and Conference keys
◦ Messaging, Application, and Directory keys
◦ Standard keypad
◦ Volume-control toggle key
◦ Speakerphone, headset, and mute keys
|
|
Backlit indicator
|
● The phone supports backlit indicators for the audio path keys (handset, headset, and speakerphone), select key, line keys, and message waiting.
|
|
Replaceable bezel
|
● The phone includes a black bezel; an optional silver bezel is also orderable separately.
|
|
Dual-position foot stand
|
● The display is easy-to-view and the buttons and keys are easy-to-use. The two-position foot stand supports viewing angles of 35 and 50 degrees; you can remove the foot stand for wall mounting, with mounting holes located on the base of the phone.
|
|
Wall-mountable
|
● You can install the phone on a wall using an optional wall-mount kit.
|
|
Key expansion module (KEM)
|
● The phone supports up to two KEMs to expand from 5- to 77-line buttons. You have the convenience of many speed dials or programmable features, or the necessity of following the activity of many lines.
|
|
Physical security
|
● The phone is compatible with the Kensington Security Slot (K-Slot) antitheft system.
|
|
Power Features
|
|
IEEE Power over Ethernet (PoE)
|
● IEEE Power over Ethernet class 3. The phone is compatible with both IEEE 802.3af and 802.3at switch blades and supports both Cisco Discovery Protocol and Link Layer Discovery Protocol - Power over Ethernet
(LLDP-PoE).
|
|
Cisco IP Phone Power Cube 4
|
● This optional power cube is used as an AC-to-DC (48V) power supply for non-PoE deployments. Use of the power cube 4 also requires the use of one of the corresponding AC country cords.
|
|
Call-Control Support
|
|
Cisco Unified Communications Manager
|
● 8.5.1 (Non-secured mode Only)
● 8.6.2
● 9.1.2
● 10.5.2
● 11.0 and later
|
|
Cisco Unified Communications Manager Express (Unified CME)
|
● 10.0 and later through fast track
|
|
Cisco Business Edition 6000 (BE 6000)
|
● 8.6.2
● 9.1.2
● 10.5.2
● 11.0 and later
|
|
Cisco Hosted Collaboration Solution (HCS)
|
