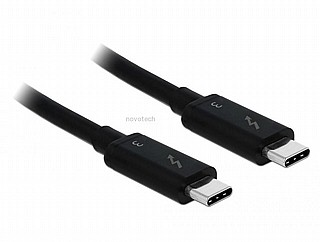

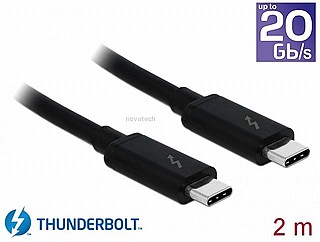

כבל Delock Thunderbolt 3 (20 Gb/s) USB-C cable male To male passive 2.0 m 3 A black

כבל Delock Thunderbolt 3 (20 Gb/s) USB-C cable male To male passive 2.0 m 3 A black

Description

This Thunderbolt™ 3 cable by Delock is universally applicable and combines all the advantages of the Thunderbolt™ 3 interface. It allows the connection of different devices such as external enclosures, monitors, card readers and docking stations via a Thunderbolt™ 3 port of a PC or laptop. The cable provides data transfer rates of up to 20 Gb/s and supports USB, DisplayPort, PCI Express as well as Ethernet data transfer. The connection of a 5K or a 4K DisplayPort monitor is possible, as is the connection of USB 3.1 Gen 1 devices. Furthermore the cable enables the power supply of connected devices with up to 60 W.

Delock Thunderbolt™ 3 cable (Video)

Note

The maximum data transfer rate of 40 Gb/s that can be achieved with Thunderbolt™ 3 can only be realised with a 0.5 m long cable (Delock 84844).

Specification

• Connector:
  1 x Thunderbolt™ 3 USB Type-C™ 24 pin male >
  1 x Thunderbolt™ 3 USB Type-C™ 24 pin male
• Chipset: Cypress E-Marker
• Cable gauge:
  32 + 34 AWG data line
  24 + 34 AWG power line
• Cable diameter: ca. 4.6 mm
• Conductors: 8 x coaxial for SuperSpeed USB, 1 x Twisted Pair for USB 2.0
• Gold-plated connector
• Triple shielded cable
• Data transfer rate:
  Thunderbolt™ 3 up to 20 Gb/s
  DisplayPort 1.2a up to 21.6 Gb/s
  SuperSpeed USB up to 5 Gb/s
  Thunderbolt™ Networking up to 10 Gb/s (Peer-To-Peer)
• Display resolution up to:
  1 x 5120 x 2880 30 Bit @ 60 Hz or
  1 x 4096 x 2160 30 Bit @ 60 Hz
  (depending on the system and the connected hardware)
• Supports data and video on a single cable
• Supports PCI Express 3.0 protocol (4 lanes)
• Supports DisplayPort 1.2a protocol (8 lanes, HBR2 and MST)
• Daisy Chain up to 6 Thunderbolt™ devices (cascadable)
• Dual channel, bi-directional data transfer
• Power supply via USB Power Delivery up to 60 W (20 V / 3 A)
• Power supply for Thunderbolt™ 3 devices with bus power (max. 15 W)
• Colour: black
• Length without connector: ca. 2.0 m

System requirements

• PC or laptop with a free Thunderbolt™ 3 port

Package content

• Thunderbolt™ cable
