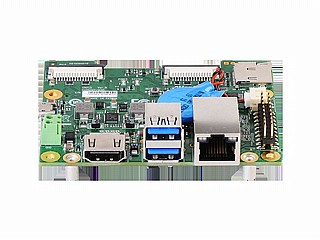

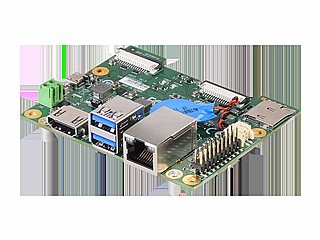

כרטיס AverMedia Carrier Board EN715

Model

EN715

Type

Carrier Board

NVIDIA GPU SoC Module Compatibility

NVIDIA® Jetson Nano™ (Version B01)/Xavier™ NX module

Networking

1x GbE RJ-45

Display Output

3840 x 2160 at 60Hz

Temperature

Operating temperature 0°C~70°C

Storage temperature -40°C ~ 85°C

Relative humidity 40 °C @ 95%, Non-Condensing

MIPI Camera Inputs

•       2x 2 lane MIPI CSI-2, 15 pin FPC 1mm Pitch Connector (Compatible  on NVIDIA® Jetson Nano™ Developer Kit)

•       1x 4 lane MIPI CSI-2, 36 pin FPC 0.5mm Pitch Connector

USB

1x USB 2.0 Micro-B for recovery

2x USB 3.0 Type-A

Storage

1x micro-SD card slot

Expansion Header

20 pins: 2x I2C, 1x UART, 9x GPIOs

Input Power

3.5mm Screw Terminal; 9V~19V is recommended.

Buttons

Power and Recovery

RTC Battery

Support RTC battery and Battery Life Monitoring by MCU

PCB/Electronics Mechanical Info

W: 87mm x L: 70.6mm x H: 27.3mm (3.43” x 2.78” x 1.07”)

Weight: 70g

Certifications

CE, FCC, KC

NVIDIA® Jetson Series

NVIDIA® Jetson Nano™ (Version B01)/Xavier™ NX module

Power Adaptor

12V, 5A

Power Cord

US/JP/EU/UK/TW

Fan Module

Heat sink with fan

MIPI Camera

For 15 pin MIPI connector:

1.raspberry pi camera v2

2.Manufacturer: APPRO.PHO

   B-04: IMX179 (8M) MIPI, 1080P (30fps)

   C-04: IMX290 (2M) MIPI, 1080P (30fps)

   C-05: IMX290 (2M) +ISP  (YUV), 1080P (30fps)

For 36 pin MIPI connector:

1.Manufacturer: APPRO.PHO

   B-03: IMX334 (4K) MIPI, 4K (30fps)

   A-06: IMX334 (4K) V-by-One® HS x1, 4K (30fps)
