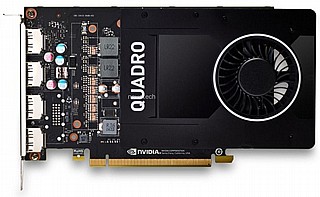

כרטיס מסך PNY Quadro P2200 5GB GDDR5 PCI-E

כרטיס מסך PNY Quadro P2200 5GB GDDR5 PCI-E

נתונים טכנים

CUDA Cores: 1280
Peak Single Precision FP32 Performance: Up to 3.8 TFLOPs
GPU Memory: 5 GB GDDR5X
Memory Interface: 160-bit
Memory Bandwidth: Up to 200 GB/s
System Interface: PCI Express 3.0 x16
Maximum Power Consumption: 75 W
Energy Star Enabling: Yes
Thermal Solution: Ultra-quiet active fansink
Form Factor: 4.40” H x 7.90” L, Single Slot
Display Connectors: DP 1.4 (4)
DisplayPort with Audio: Yes
DVI-D Single-Link Connector: Via included adapter
HDMI Support: Via optional adapters
VGA Support: Via optional adapters
Number of Displays Supported: 4
Maximum DP 1.4 Resolution: HDR 5120 x 2880 at 60Hz (30-bit color)
5K Display Support: HDR 5120 x 2880 at 60Hz (30-bit color)
4K Display Support: HDR 4096 x 2160 at 60Hz or 3840 x 2160 at 60Hz
Maximum DVI-D DL Resolution: 2560 x 1600 at 60Hz via 3rd party adapter
Maximum DVI-D SL Resolution: 1920 x 1200 at 60Hz via included adapter
HDCP Support: Yes
Graphics APIs: Shader Model 5.1, OpenGL 4.5, DirectX 12.0, Vulkan 1.0
Compute APIs: CUDA, DirectCompute, OpenCL
NVIEW: Yes
NVIDIA MOSAIC: Yes (Windows 10, 8.1, 8, 7, and Linux)

ארכיטקטורה גרפית תלת מימד

Scalable geometry architecture
Hardware tessellation engine
NVIDIA GigaThread engine with dual copy engines
Shader Model 5.1 (OpenGL 4.5 and DirectX 12)
Up to 32 K x 32 K texture and render processing
Transparent multisampling and super sampling
16x angle independent anisotropic filtering
32-bit per-component floating point texture filtering and blending
Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, HEVC, MVC, and VC1
Dedicated H.264 and HEVC Encoder
Blu-ray dual-stream hardware acceleration (supporting HD picture-in-picture playback)
NVIDIA GPU Boost (automatically improves GPU engine throughput to maximize application performance)

ארכיטקטורת עיבוד

Pascal SM Architecture (streaming multi-processor design that delivers greater processing efficiency)
Dynamic Parallelism (GPU dynamically spawns new threads without going back to the CPU)
API support includes: CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and Fortran
96 KB of RAM (dedicated shared memory per SM)

תכונות תצוגה מתקדמות

Support for any combination of four connected displays
Four DisplayPort 1.4 outputs (supporting resolutions such as 4096x2160 @ 120 Hz and 5120x2880 @ 60 Hz)
DisplayPort to VGA, DisplayPort to DVI (single-link and dual-link), and DisplayPort to HDMI cables (resolution support based on dongle specifications)
HDR support over DisplayPort 1.4 (SMPTE 2084/2086, BT. 2020) (4K @ 60 Hz 10b/12b HEVC Decode, 4K @ 60 Hz 10b HEVC Encode)
HDCP 2.2 support over DisplayPort, DVI, and HDMI connectors
12-bit internal display pipeline (hardware support for 12-bit scanout on supported panels, applications, and connection)
NVIDIA 3D Vision technology, 3D DLP, Interleaved, and other 3D stereo format support
Full OpenGL quad buffered stereo support
Underscan/overscan compensation and hardware scaling
NVIDIA NVIEW multi-display technology
Support for NVIDIA Quadro MOSAIC, NVIDIA NVIEW multi-display technology, NVIDIA Enterprise Management Tools

תצוגה ושמע דיגיטלים

Support for the following audio modes: Dolby Digital (AC3), DTS 5.1, Multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), and MPEG-2/MPEG-4 AAC
Data rates of 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz, 176 KHz, and 192 KHz
Word sizes of 16-bit, 20-bit, and 24-bit

דרישות מערכת (מינימום)

Intel Core i5, i7, Xeon or later
AMD Phenom or Opteron-class or later
PCIe x16 Gen 3 (preferred) expansion slot
2 GB or more of system memory, 8 GB recommended
200MB of available disk space for full driver installation
Blu-ray or DVD-ROM drive
Internet connection (if preferred for driver installation)
DisplayPort (preferred) or DVI compatible displays
HDMI display(s) with purchase of optional DP to HDMI adapter(s)
