Type

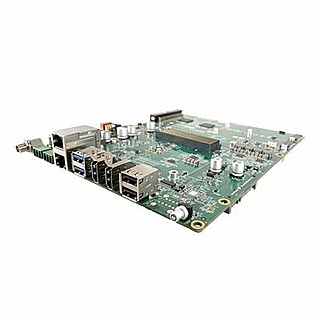

Carrier Board

NVIDIA GPU SoC Module

Compatibility

NVIDIA® Jetson AGX Xavier™ or

AGX Xavier™ Industrial module

Networking

2x GbE (RJ-45)

Display Output

2x HDMI type A, maximum resolution: 3840x2160 at 60Hz

Temperature

Operating Temperature -25°C ~ 85°C

Storage Temperature -40°C ~ 85°C

Relative Humidity 40 °C @ 95%, Non-Condensing

USB

1x USB 2.0 Micro-B for recovery

2x USB 3.0 Type-A (USB3.1 x 2)

3x USB 2.0

RS-485

1x RS-485

CAN bus

1x CAN bus with transceiver

Expansion Header

40 pins: 1x UART, 2x I2C,

1x CAN (W/O transceiver), 5x GPIO

User Expansion

1x M.2 Key E 2230 for Wi-Fi module

(PCIe Gen4x 1)

1x M.2 Key M 2280 for NVMe

(PCIe Gen4x 4)

2x M.2 Key M 2280 (PCIe Gen2x 2) or

4x mPCIe Gen2 x1

1x SATA (Optional)

DIP Switch Expansion

1. Auto power on enable/Disable

2. FAN PWM on enable/Disable

3. RS485 Terminal ON/OFF

4. CAN Bus Terminal ON/OFF

Input Power

12-54V

Buttons

Power and Recovery (Power button with green LED)

RTC Battery

Support RTC battery and Battery Life Monitoring by MCU

PCB/Electronics Mechanical Info

W:220mm x L:170mm x H:53mm

(8.66” x 6.69” x 2.09”)

Weight: 300g

Certifications

CE, FCC, KC
