Type

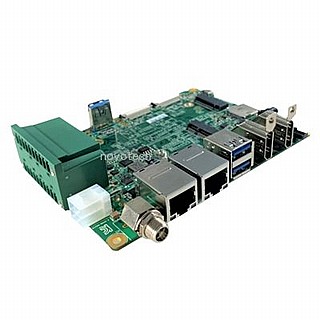

Carrier Board

NVIDIA GPU SoC Module Compatibility

NVIDIA® Jetson Xavier™ NX/ TX2 NX/ Nano module

Networking

2x GbE RJ-45

1xM.2. key E 2230 for wifi (Nano doesn’t support)

Display Output

2x HDMI 2.0 (3840 x 2160 at 60Hz)

(NANO supports 1x HDMI 2.0 )

Temperature*

Operating temperature 0°C~70°C

Storage temperature -40°C ~ 85°C

Relative humidity 40 °C @ 95%, Non-Condensing

MIPI Camera Inputs

•2x 2 lane MIPI CSI-2, 15 pin FPC 1mm Pitch Connector

•1x 4 lane MIPI CSI-2, 36 pin FPC 0.5mm Pitch Connector

USB

1x USB 2.0 Micro-B for recovery

3x USB 3.0 Type-A

Storage

1x micro-SD card slot

1xM.2. key M 2280 for NVMe

Expansion Header (Internal)

20 pins: 2x I2C, 1x UART, 4x GPIOs, 1xCAN (EU terminal block)

(Nano: 0xCAN)

Input Power

DCINJACK on board & ATX 4pin

12V/5A, 12V~24V is recommended.

Power Cord

US/JP/EU/UK/TW/CN/AU

Fan Module

Heat sink with fan (optional)

Buttons

Power and Recovery

RTC Battery

Support RTC battery and Battery Life Monitoring by MCU

PCB/Electronics Mechanical Info

120mm (W) x 90mm (L) x 26.5mm (H)

Weight: 125 g

Certifications

CE, FCC,KC
