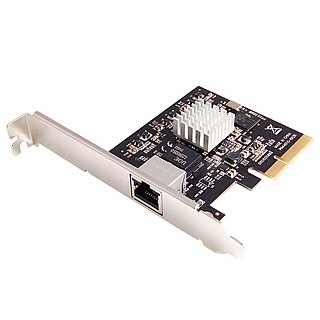

כרטיס רשת STLAB N-480 PCIe 10G 5-Speed Multi-Gigabit Network Card
This card is a Multi-Gigabit network adapter that’s runs on a high speed PCIe x4 host but interface.
This card hosts the Tehuti’s new 3rd generation TN4010 controller, and optimized 10 Gigabit Ethernet MAC designed for low-power, low-cost, single-port connectivity required by Application Servers and Workstations. The TN4010 MAC is paired with Marvell® Alaska® 88X3310P transceiver, a low-power, high-performance 10 Gigabit Ethernet PHY, to enable five-speed connectivity (10GBase-T, 5GBase-T 2.5GBase-T 1000Base-T, and 100Base-TX) over low-cost standard CAT-6a Ethernet cabling, up to 100m (Cat-5e and CAT-6 are supported compliant to Link Segment specifications). This combination creates a new gateway to cost-conscious consumer applications, as well as to intensive data environments
Features
Supports 10G/5G/2.5G/1G/100M
Runs up to 10G at 100m Cat 6A cable and 5G at 100m Cat 5e/Cat 6 cable
Backward compatibility with 1000Base-T, 100Base-T Networks
PCI Express Gen-2 x4 Host Bus interface
EEE (Energy Efficient Ethernet)
9K Jumbo Frames
IP, TCP, UDP checksum offloading
IEEE 802.1Q Tagged VLAN
Virtual NIC support
Reduced CPU utilization and improved throughput
Requirements
Hardware
The following system specs are recommended minimum
PCIe slot: Available 4-Lanes PCI-Express slot gen 2.0 or later
Processor: Quad Core 3.0GHz or higher
RAM: 4GB memory or higher
Software
Operating systems supported are (both 32 and 64 bits)
Windows 7
Windows Server 2008 R2
Windows Server 2012
Windows 8.1
Windows Server 2012 R2
Windows 10
Linux 2.6.24 or later
VMware ESXi 5.x/6.0
Mac OS X 10.12.6 or later
Package Contents
1 x PCIe 10G 5-Speed Multi-Gigabit Network Card
1 x Driver CD
1 x User Manual
Packing Information:
* Retail Box Packing
* 20pcs. Per carton
* Measurment: 36x30x24 cm
* G.Weight: 4.4 kg
* N.Weigt: 3.4 kg
