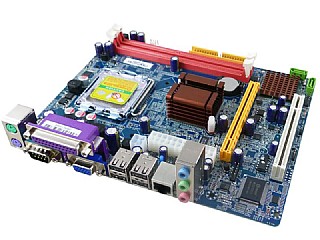

לוח אם G31CEL2 למעבדי INTEL 775PIN

Intel® Core™2 CPU support

This motherboard supports the latest Intel® Core™2 processors in LGA775 package. With new Intel® Core™ microarchitecture technology and 1333 MHz FSB, Intel® Core™2 processor is one of the most powerful and energy efficient CPU in the world.

Intel® G31 Chipset

The Intel® G31 Express Chipset boosts your gaming and multimedia experience with the integrated graphics engine Intel® Graphics Media Accelerator 3100. It supports 1066MHz FSB (front-side-bus), and delivers breakthrough advances in 3D and 2D graphics; and video capabilities. This integrated chipset is able to meet the changing display requirements of visually rich applications and features the Intel® Clear Video Technology - which trailblazes new standards in high-definition video, crisp imaging, and accurate color control.

Dual channel DDR2 800 support

Dual-channel DDR2 technology doubles the bandwidth of your system memory and hence boost the system performance to out perform any memory existing solutions in the market.

PCI Express Architecture

PCI Express is the latest I/O interconnect technology that will replace the existing PCI. With a bus bandwidth 4 times higher than that of AGP 8X interface, PCI Express x16 bus performs much better than AGP 8X in applications such as 3D gaming.

SATA 3Gb/s

This motherboard supports hard drives based on the Serial ATA (SATA) 3Gb/s storage specifications, delivering enhanced scalability and doubling the bus bandwidth for high-speed data saving and retrieval.

100 Mbit / Gigabit LAN

The on-board LAN controller is a highly integrated 100 Mbit / GbLAN controller. It is enhanced with an ACPI management function to provide efficient power management for advanced operating systems

CPU(Processor)

Supports Intel Pentium 4/Pentium D/CoreTM2Duo/ Pentium Dual-Core E2XXX or Celeron4XXX/Wolfdale CPU in LGA775 package

Chipset

North Bridge: Intel G31 Chipset

South Bridge: Intel ICH7 Chipset

Memory

Support Dual channel DDR2 667/800 SDRAM (4GB Max)

2 * DDR2 DIMMs (240 pin/ 1.8V)

Slots

- 1 * PCI Express x16 Slot

- 1 * PCI Slot (Support 3.3V / 5V PCI bus Interface)

Storage

- 4 * Serial ATA 2.0 devices

- 1 * IDE Port

Internal I/O Connectors

- 1 * 24-pin ATX Power Connetor

- 1 * 4-pin ATX 12V Power Connetor

- 2 * USB connectors support additional 2 USB ports

- 1 * Front panel audio connector

- 1 * System Panel connector

Back Panel I/O Ports

- 1 * PS/2 Mouse

- 1 * PS/2 Keyboard

- 1 * VGA

- 1 * COM

- 1 * Parallel Port，Support SPP/EPP/ECP mode

- 4 * USB 2.0 / 1.1

- 1 * RJ45(LAN) Port

- 1 * 3 Audio jacks

BIOS

EFI BIOS

LAN

Onboard Realtek 8105E 100M LAN, Compliance with PCI 2.2

Audio

Chip integrated by Realtek ALC662, Supports 5.1-channel audio-out

Form Factor

- Micro ATX  - 211*168 mm
