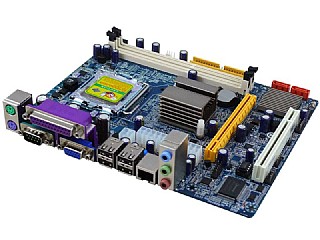

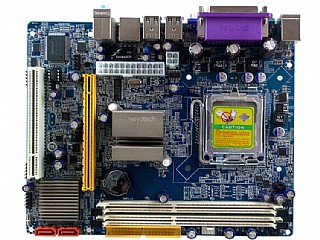

לוח אם G41CDL2 למעבדי INTEL 775PIN

Intel® Core™2 Quad / Core™2 Duo CPU support

This motherboard supports Intel® LGA775 Core™ 2 Quad/ Core™ 2 Duo processors, which are excellent for multitasking, multimedia, and enthusiastic gamers with 1333/1066/800 MHz FSB. This motherboard also supports Intel® CPUs in the 45nm manufacturing process.

Intel® G41 Chipset

The Intel® G41 Express Chipset is designed to support dual-channel DDR3 1333/1066, 1333/1066/800 Front Side Bus (FSB), PCIe 1.1, and mutli-core CPUs. It especially includes Intel® Fast memory bandwidth and reduces the latency of the memory accesses

Dual-Channel DDR3 1333 / 1066 support

This motherboard supports DDR3 memory that features data transfer rates of 1333 (O.C.)/1066/800 MHz providing great performance for 3D graphics and other memory-demanding applications

PCI Express Architecture

PCI Express is the latest I/O interconnect technology that will replace the existing PCI. With a bus bandwidth 4 times higher than that of AGP 8X interface, PCI Express x16 bus performs much better than AGP 8X in applications such as 3D gaming.

SATA 3Gb/s

This motherboard supports hard drives based on the Serial ATA (SATA) 3Gb/s storage specifications, delivering enhanced scalability and doubling the bus bandwidth for high-speed data saving and retrieval.

Gigabit LAN

The on-board LAN controller is a highly integrated GbLAN controller. It is enhanced with an ACPI management function to provide efficient power management for advanced operating systems.

CPU(Processor)

Supports Intel® CoreTM 2 Duo/ CoreTM 2 Quad Series processor in LGA775 package

Chipset

North Bridge: Intel G41 Chipset

South Bridge: Intel ICH7 Chipset

Memory

Support Dual channel DDR3 1333/1066 SDRAM (8GB Max

2 * DDR3 DIMMs (240 pin/ 1.5V

Slots

- 1 * PCI Express x16 Slot

- 1 * PCI Slot (Support 3.3V / 5V PCI bus Interface

Storage

- 2 * Serial ATA 2.0 devices

- 1 * IDE Port

Internal I/O Connectors

- 1 * 24-pin ATX Power Connetor

- 1 * 4-pin ATX 12V Power Connetor

- 1 * USB connector support additional 2 USB ports

- 1 * Front panel audio connector

- 1 * System Panel connector

Back Panel I/O Ports

- 1 * PS/2 Mouse

- 1 * PS/2 Keyboard

- 1 * VGA

- 1 * COM

- 1 * Parallel Port，Support SPP/EPP/ECP mode

- 4 * USB 2.0 / 1.1

- 1 * RJ45(LAN) Port

- 1 * 3 Audio jacks

BIOS

EFI BIOS

LAN

Onboard Realtek 8105E 100M LAN, Compliance with PCI 2.2

Audio

Chip integrated by Realtek ALC662, Supports 5.1-channel audio-out

Form Factor

- Micro ATX  - 211*168 mm
