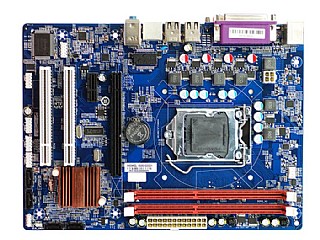

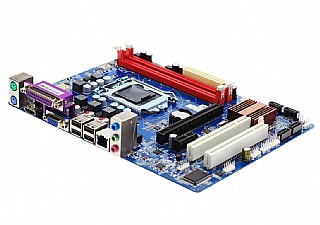

לוח אם H55KCL למעבדי Esonic INTEL LGA 1156

LGA1156 socket for Intel® 1st Generation Core™i7/ Core™i5/Core™i3 Processors

upporting intel® 1st generation core™ i7, core™ i5 and core™ i3 processors featuring the first time ever integrated graphics on chip and lga 1156 socket(core™ i5 and core™ i3 processors only),


Intel® H55 Express Chipset

The Intel brand new computing architecture based on the innovation of micro-architecture transforms 3-chip solutions to a 2-chip platform. The 1st generation Intel® Core i7/ Core i5 ™ processors with LGA1156 package integrate memory controller to support dual channel DDR3 memory.


Dual-Channel DDR3 1333 / 1066 support

This motherboard supports DDR3 memory that features data transfer rates of 1333 (O.C.)/1066/800 MHz providing great performance for 3D graphics and other memory-demanding applications

PCI Express Architecture

PCI Express is the latest I/O interconnect technology that will replace the existing PCI. With a bus bandwidth 4 times higher than that of AGP 8X interface, PCI Express x16 bus performs much better than AGP 8X in applications such as 3D gaming.

SATA 3Gb/s

This motherboard supports hard drives based on the Serial ATA (SATA) 3Gb/s storage specifications, delivering enhanced scalability and doubling the bus bandwidth for high-speed data saving and retrieval.

USB 2.0/3.0

USB2.0/3.0

Gigabit LAN

The on-board LAN controller is a highly integrated GbLAN controller. It is enhanced with an ACPI management function to provide efficient power management for advanced operating systems.


CPU(Processor)

Support Intel® 1 generation Core™ i7/Core™ i5/Core™ i3 Series Processors in the LGA1156 package

L3 cache varies with CPU

Chipset

Intel® HM55 Express Chipset

Memory

2*1.5V DDR3 DIMM sockets Suporting up to 8GB of system memory

Support for DDR3 1600/1333/1066/800MHz memory modules.

Slots

- 1 * PCI Express x16 Slot

- 1 * PCI Express x1 Slot
- 2* PCI Slots

Storage

- 4 * SATA 3Gb/s connectors, Support up to 6SATA 3Gb/s devices

Internal I/O Connectors

- 1 * 24-pin ATX Power Connetor

- 1 * 4-pin ATX 12V Power Connetor

- 2 * USB connector support additional 4 USB ports
- 1 * COM connector

- 1 * Front panel audio connector

- 1 * System Panel connector

Back Panel I/O Ports

- 1 * Paraller Port
- 1 * PS/2 Mouse/Keyboard

- 1 * VGA

- 1 * HD Port

- 4 * USB 2.0 / 1.1

- 1 * RJ45(LAN) Port

- 1 * 3 Audio jacks

LAN

Onboard Realtek 8105E 1000M LAN,

Audio

Chip integrated by Realtek ALC661, Supports 5.1-channel audio-out

Form Factor

- Micro ATX  - 244*179 mm
