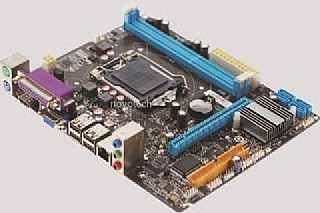

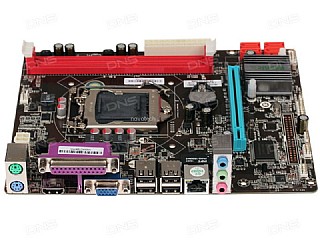

לוח אם H61FDL2 למעבדי INTEL LGA 1155 מבית Esonic, לוח אם איכותי מבית ESONIC, בעל תושבת LGA 1155 המתאימה למעבדי אינטל, ערכת שבבים H61, תאימות לזכרונות DDR3, בעל יציאות ,VGA HDMI , IDE Port , SATA

CPU	º LGA1155 socket for latest Core i7 / Core i5 / Core i3 high-end desktop processors º DMI 2.5GT/s
CHIPSET	º H61/H67/Q65/67 Express Chipset
MEMORY	º Dual-channel DDR3 memory architecture º 2 x 240-pin DDR3 DIMM socket support up to 8 GB º Support DDR3 1333/1066 SDRAM
EXPANSION SLOT	º 1 x PCI Express x16 slot
STORAGE	º 4 x Serial ATA 3.0Gb/s devices
AUDIO	º REALTEK 6-channel audio CODEC
LAN	º REALTEK Gigabit Fast Ethernet Controller º REALTEK 10/100 Fast Ethernet Controller(Optional)
REAR PANEL I/O	º 4 x USB ports º 1 x VGA port º 1 x HDMI Port º 1 x RJ45 LAN connector º 1 x Audio port (3 holes jack)
INTERNAL I/O CONNECTORS & HEADERS	º 1 x 24-pin ATX Power Supply Connector & 4-pin 12V Connector º 4 x Serial ATA 3Gb/s connectors º 2 x USB 2.0 headers support additional 4 USB 2.0 Ports º 1 x Clear CMOS header º 1 x Front panel audio header º 1 x SPDIF out header º 1 x Front panel header º 1 x Chassis intrusion header º CPUFAN/SYSFAN connectors
SYSTEM BIOS	º AWARD BIOS with 16Mb SPI Flash ROM º Supports Plug and Play, STR/STD, Hardware monitor, Multi Boot, DMI º Supports ACPI revision 3.0 specification CPU voltage adjustable Memory voltage adjustable
FORM FACTOR	º Micro-ATX Size, 210mm*190mm
