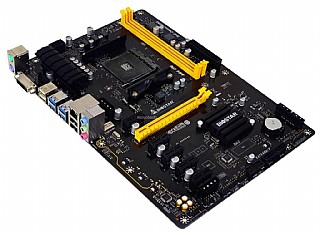

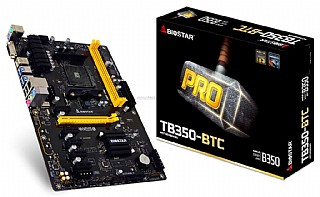

לוח ראשי BIOSTAR TB350-BTC AM4 AMD B350 ATX Motherboards

לוח ראשי BIOSTAR TB350-BTC AM4 AMD B350 ATX Motherboards

לוח אם מבית BIOSTAR, בעל תושבת AM4 המתאימה למעבדי AMD Ryzen CPU, ערכת שבבים B350, תאימות לזכרונות DDR4, ללוח יש 6 חריצי הרחבה PCI-E
TB350-BTC AM4 AMD B350 for Bitcoin, Ethereum, or Zcash Miner
Ryzen Mining B350

מאפיינים ושידרוגים:

פרטים נוספים:

  • מקט: 3991
  • אחריות: 12 חודשים
  • אחריות: ע"י נובוטק
  • זמן אספקה: עד21ימי עסקים
  • אפשרויות משלוח:
    אפשרויות משלוח למוצר לבחירה בקופה:
    • איסוף עצמי בחינם
    • משלוח עד הבית עם שליח 45.00 ₪
    • משלוח מהיר תוך 24 שעות - ליעדים בין חדרה לגדרה 85.00 ₪
    • משלוח לנקודת איסוף - חבילות קטנות 19.00 ₪
    סגירה
לרכישת מוצר זה התקשרו לקבלת פרטים
  • +
  • -
visaisracardmastercarddinersamerican express

לוח ראשי BIOSTAR TB350-BTC AM4 AMD B350  ATX Motherboards



Chipset AMD B350
CPU SUPPORT AMD A-series APU / Ryzen CPU / NPU for Socket AM4
Maximum CPU TDP (Thermal Design Power) : 95Watt
MEMORY Support Dual Channel DDR4 3200(OC)/ 2933(OC)/ 2667/ 2400/ 2133/ 1866 MHz
Support Non-ECC & ECC Un-buffered DIMM Memory modules
2 x DDR4 DIMM Memory Slot
Max. Supports up to 32GB Memory
* DDR4 2667 for AMD Ryzen CPU
Ryzen - DDR Maximum Frequency Support Table(For better DDR4 compatibility, it is recommended to follow the table below to install DDR4 modules. Please refer to memory support list for more details.)
Maximum DIMMA1 DIMMB1
DDR4-2667 SR -
DDR4-2667 DR -
DDR4-2667 SR SR
DDR4-2400 DR DR
SR:Single-rank DIMM, 1R x4 or 1R x8
DR:Dual-rank DIMMs, 2R x4 or 2R x8
EXPANSION SLOT 1 x PCI-E x16 3.0 Slot(x16 for Ryzen CPU only, NPU/APU run at x8 speed)
2 x PCI-E x1 3.0 Slot
3 x PCI-E x1 2.0 Slot
STORAGE 4 x SATA3 Connector
Support SATA RAID: 0,1,10
USB 4 x USB 3.1 Gen1 Port
1 x USB 3.1 Gen1 Header
2 x USB 2.0 Port
2 x USB 2.0 Port(only 5V power, up to 1.5A)
2 x USB 2.0 Header
LAN Realtek RTL8111H - 10/100/1000 Controller
Support Super LAN Surge Protection
INTEGRATED VIDEO By CPU model
Supports DX12
Supports HDCP
CODEC Realtek ALC887 8-Channel HD Audio
REAR I/O 1 x PS/2 Mouse
1 x PS/2 Keyboard
4 x USB 3.1 Gen1 Port
2 x USB 2.0 Port
2 x USB 2.0 Port(only 5V power, up to 1.5A)
1 x DVI-D Connector, resolution up to 1920 x 1200 @60Hz
1 x RJ-45 Port
3 x Audio Connector
INTERNAL I/O 1 x USB 3.1 Gen1 Header
2 x USB 2.0 Header
4 x SATA3 6Gb/s Connector
1 x SATA Power Connector(for rear USB power enhancement)
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Header
1 x System Fan Header
1 x Serial Header
2 x PCI-E 12V 4Pin Connector(Must be installed when using for bitcoin mining.)
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU / System Fan Control
System Voltage Monitoring
DIMENSION ATX Form Factor Dimension: 29.5cm x 21cm ( W x L )
OS SUPPORT Support Windows 7(x64) / 10(x64)
BUNDLE SOFTWARE BullGuard
Smart Speed LAN(Windows 7 only)
ACCESSORIES 2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x User Manual
FEATURES Supports 100% Solid capacitor
Supports BIOS-Flasher
Supports BIOS Online Update
Caution!! The specification and pictures are subject to change without notice!
יצרן : Biostar
ערכת שבבים: B350
תושבת: AM4
תאימות לזיכרון : DDR 4
