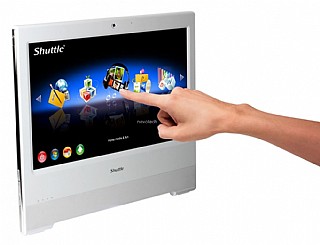

מחשב Shuttle All-in-One PC Barebone X50V4

מחשב All-in-One הכולל את כל רכיבי המחשב במסך המחשב עצמו, למחשב מסך מגע בגודל 15.6 אינטש, מעבד Intel® Celeron® Processor 2957U ultra low voltage,

יצרן: Shuttle , דגם: X50V4‏, גודל: 15.6''‏, מעבד: Intel® Celeron® Processor 2957U, כרטיס מסך: ntel HD Graphic engine‏, צבע: שחור , חיבורים: HDMI‏, USB 2.0‏, USB 3.0‏, תכונות: מסך מגע ‏, חריץ הרחבת זיכרון‏, מצלמה קדמית‏, משך אחריות: שנה‏,

מאפיינים ושידרוגים:

פרטים נוספים:

מקט: 2176
אחריות: 12 חודשים
אחריות: יבואן רשמי
זמן אספקה: עד7ימי עסקים
אפשרויות משלוח:
אפשרויות משלוח למוצר לבחירה בקופה:

איסוף עצמי בחינם

דואר רשום 25.00 ₪
משלוח עד הבית עם שליח 45.00 ₪
משלוח מהיר תוך 24 שעות - ליעדים בין חדרה לגדרה 85.00 ₪
משלוח לנקודת איסוף - חבילות קטנות 19.00 ₪

סגירה

מחיר ₪ 1,931.00 ILS 9/7/2027 In stock Shuttle 2176 2176

קנה עכשיו הוסף לסל

תיאור מלא
מפרט טכני
חוות דעת

מערכת מחשב המורכבת מיחידה אחת כולל המסך Shuttle All-in-One PC Barebone X50V4

Fanless and silent
Passive heatpipe cooling, no fan noise at all
Perfect to be used in noise-sensitive environments
Fanless, dust-free and thus virtually maintenance-free
24/7 nonstop operation
This device is approved for 24/7 permanent operation.
Requirements:
- Free circulation of air amongst the PC must be guaranteed.
- Ventilation holes must be clear.
- If a hard disk is installed, this must also be approved for permanent
operation by its manufacturer.
IP54 protected
The front panel is dust-protected and protected from
splashing of water according to protection class IP54.
Low power consumption
Power consumption: ca. 11 W (idle mode) and ca. 22.5 W (full load)
When switched off: 0.25W (S5 mode with EUP=on)
(Configuration: 4 GB RAM, 60 GB SSD and Windows 7)
Chassis
Colour: black or white
Dimensions: 391 x 327 x 42 mm (WxHxL)
100mm VESA mount capable
Mounting hole for Kensington lock
Weight: 3.08 kg net, 4.24 kg gross
Operating system
This system comes without operating system.
It is compatible with:
- Windows 7 (including Embedded [1]), 32- and 64-bit
- Windows 8 / 8.1 (including Embedded [1]), 32- and 64-bit
- Windows 10, 32- and 64-bit
- Linux, 32 and 64 Bit [2]
Touchscreen
Touchscreen function supports fingertip input
Resistive 5-wire single-touch technology
Including stylus for the touchscreen
39.6cm display (15.6")
39.6cm / 15.6" LCD display, ratio: 16:9 wide-screen panel
Resolution: 1366x768 = 1.05 Megapixel
Backlight unit: High power LED, Luminance: 220 cd/sqm
Glass thickness: 0.5 mm
Processor
Intel® Celeron® Processor 2957U (ultra low voltage)
SOC with integrated chipset including controller for memory and graphics
22 nm manufacturing process, FCBGA1168 package
4th Generation Intel® Core™ Processor (Codename "Haswell")
Dual Core (two threads)
Core frequency: 1.4 GHz
L1/L2/L3 Cache size: 128 kB, 512 kB, 2 MB
Max. Thermal Design Power (TDP): 15 W
Supports 64-bit instructions, Execute Disable Bit
Intel® Virtualization Technology (VT-x) with Extended Page Tables (EPT)
Enhanced Intel SpeedStep® Technology
Thermal Monitoring Technologies
Passive heatpipe cooling without any fan
Integrated Graphics
The Graphics Processing Unit (GPU) is integrated in the processor
Intel® HD Graphics core (Haswell)
10 Execution Units (EUs) clocked at 200 - 1000 MHz
Supports Intel® Quick-Sync-Video and Intel® Clear-Video
Supports DirectX 11.1, OpenCL 1.2 and OpenGL 4.0, Shader 5.0
Shared Memory technology
Up to three displays simultaneously
Two video outputs: HDMI v1.4 and D-Sub (VGA)
Supports triple display: the integrated display plus two external displays
1) Clone mode: all displays show the same content at 1366x768 resolution
2) Extended mode: all displays show different content, while the external displays run at Full HD resolution (1920x1080) maximum.
BIOS
AMI BIOS in 8 MByte EEPROM with SPI interface
Supports Power fail resume / always on
Supports Wake-on-LAN (WOL) from S3, S3, S5 ACPI states
Supports hardware monitoring and watch dog functionality
Memory
1x SO-DIMM slot with 204 pins
Supports one module DDR3L-1333/1600 (PC3-10600/12800) at 1.35V
Maximum capacity: 8 GB
Caution: This mainboard does only support 1.35V DDR3L memory modules.
Note: DDR3L has a lower operation voltage compared to DDR3
Hard disk drive / SSD
Supports one SATA hard disk or one SATA SSD drive in 6.35cm/2.5" format
The SATA 3.0 interface supports up to 600MB/s data transfer speed (6 Gbit/s)
Supports one drive with up to 12.5 mm height
Mini Slots
This devices comes with two mini expansion slots:
1) the half size slot is occupied with a WLAN module
2) the full size slot supports a mSATA flash memory card (max. 6 Gbit/s)
Card Reader
Integrated card reader supports SD, SDHC and SDXC memory flash cards
Webcam
Integrated 2.0 Megapixel (1600x1200) HD webcam
Microphone and speakers
Front panel with integrated Electret Condenser Microphone and
2x 2W speakers
Integrated Audio
Realtek ALC269 Audio Codec
Two analog audio connectors (3.5mm):
1) Line-out (head phone)
2) Microphone input
Digital Audio is supported via HDMI.
Wired Network
RJ45 connector supports Gigabit LAN at 10/100/1000 Mbit/sec.
Network controller Realtek 8111G
Supports Wake-on-LAN (WOL) from S3, S3, S5 ACPI states
Supports network boot by Preboot eXecution Environment (PXE)
Wireless Network (WLAN)
WLAN chip: Realtek 8188EE
Supports IEEE 802.11b/g/n, max. 150Mbps up-/downstream
Security: WPA/WPA2, WEP
Half-size Mini-PCIe-Card
Front LEDs
Power LED (blue)
Hard disk LED (orange)
Connectors left side
Power button
2x USB 2.0
SD card reader
Hole with power button
Hole with Clear CMOS button
Connectors bottom side
HDMI 1.4 (supports digital video and digital audio)
2x USB 3.0
2x USB 2.0
Gigabit Network (LAN, RJ45)
Audio Line-out /head phone (3.5 mm jack socket)
Microphone input (3.5 mm jack socket)
DC input for external power adapter (5.5 / 2.5 mm)
Perforation for optional TV/3G antenna (diameter: 9 mm)
Optional: 2x COM/serial (RJ45), DIO (RJ11) for cash drawer (assessory POS01)
Connectors back side
VGA connector (D-Sub 15 pol., analog video)
Optional: 2x COM/serial (D-Sub), 1x LPT/parallel (accessory: PCL71 or POS01)
Connectors onboard
Serial ATA (6 Gbps)
Serial ATA power connector
4x USB 2.0 header (three occupied, one free)
Fan connector (4 pin)
LVDS header (Low Voltage Differential Signaling)
LPC header (Low Pin Count)
Power adapter
External 65 W power adapter (fanless)
Input: 100~240 V AC, 50/60 Hz, max. 1.6 A
Output: 19 V DC, max. 3.42 A, max. 65 W
DC Connector: 5.5 / 2.5 mm (outer/inner diameter)
Included Accessories:
Quick Guide
Driver DVD
External Power Adapter (65W)
Power cord
Serial ATA cable for the 2.5" drive
Screws
Optional Accessories:
PCL71: COM / LPT adapter:
- 1x Parallel (25p D-Sub)
- 2x Serial RS232 (9p D-Sub) supports 0 / 5 / 12V
POS01: COM / LPT adapter:
- 1x Parallel (25p D-Sub)
- 2x Serial RS232 (9p D-Sub) supports 0 / 5 / 12V
- 2x Serial RS232 (8p RJ45)
- 1x DIO/RJ11 connector for cash drawer supports 12 / 24V
PF55: Carrying bag
Environmental criteria
Operating temperature: 0~40°C
Humidity: 10~90%
Certification and Compliance
EMI: CE, FCC, BSMI, C-Tick
Safety: CB, BSMI, ETL, CCC
Other compliances: RoHS, ErP Lot6, Energy Star v5.0

ניתן להוסיף את הכל הרכיבים מכל היצרנים לפי דרישה

יצרן :	Shuttle
גודל מסך:	15.6 אינטש
מסך מגע :	כולל
סוג מעבד:	Celeron
