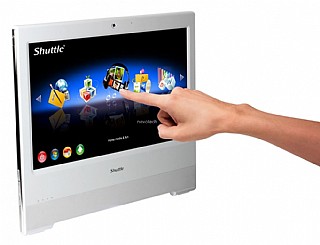

מחשב Shuttle All-in-One PC X50V4 כולל דיסק SSD

מחשב All-in-One הכולל את כל רכיבי המחשב במסך המחשב עצמו, למחשב מסך מגע בגודל 15.6 אינטש, מעבד Intel® Celeron® Processor 2957U ultra low voltage,

יצרן: Shuttle , דגם: X50V4‏, גודל: 15.6''‏, מעבד: Intel® Celeron® Processor 2957U, דיסק 120GB SSD, זיכרון 4GB DDR III 1600MHZ, כרטיס מסך: ntel HD Graphic engine‏, צבע: שחור , חיבורים: HDMI‏, USB 2.0‏, USB 3.0‏, תכונות: מסך מגע ‏, חריץ הרחבת זיכרון‏, מצלמה קדמית‏, משך אחריות: שנה‏,

מאפיינים ושידרוגים:

פרטים נוספים:

מקט: 2175
אחריות: 12 חודשים
אחריות: יבואן רשמי
זמן אספקה: עד45ימי עסקים
אפשרויות משלוח:
אפשרויות משלוח למוצר לבחירה בקופה:

איסוף עצמי בחינם

דואר רשום 25.00 ₪
משלוח עד הבית עם שליח 45.00 ₪
משלוח מהיר תוך 24 שעות - ליעדים בין חדרה לגדרה 85.00 ₪
משלוח לנקודת איסוף - חבילות קטנות 19.00 ₪

סגירה

מבצע ₪ 2,380.00 ILS 9/7/2027 In stock Shuttle 2175 2175

קנה עכשיו הוסף לסל

תיאור מלא
מפרט טכני
חוות דעת

מערכת מחשב המורכבת מיחידה אחת כולל המסך מחשב Shuttle All-in-One PC X50V4 הכוללת את המפרט הבא :

Shuttle’s new 15.6” X50V4 All-in-one PC is equipped with an Intel® Celeron® 2957U high-performance dual-core processor, made for DOOH application. It provides HDMI and D-sub interface to connect with two monitors and support three independent displays and has a built-in 2M Full HD webcam for online conference meeting. The X50V4 front panel features IP54 design for DOOH applications such as kiosks in indoor public areas. With IP54 design, the device is protected against dust and splash water. The fanless design ensures 24/7 reliable and silent operation and is operable in 0-40 ⁰C ambient temperatures. The X50V4 offers a PCL71 accessory (RS232, RS232/RS422/RS485, and parallel port) and a POS01 accessory (RS232, RS232/RS422/RS485, Parallel Port, and DIO) for various kiosk, digital signage, and POS applications needing to connect with cash drawers, bar code scanners, and other peripherals

Fanless and silent
Passive heatpipe cooling, no fan noise at all
Perfect to be used in noise-sensitive environments
Fanless, dust-free and thus virtually maintenance-free
24/7 nonstop operation
This device is approved for 24/7 permanent operation
Requirements
- Free circulation of air amongst the PC must be guaranteed
- Ventilation holes must be clear
- If a hard disk is installed, this must also be approved for permanent
operation by its manufacturer
IP54 protected
The front panel is dust-protected and protected from
splashing of water according to protection class IP54
Low power consumption
Power consumption: ca. 11 W (idle mode) and ca. 22.5 W (full load
When switched off: 0.25W (S5 mode with EUP=on
(Configuration: 4 GB RAM, 60 GB SSD and Windows 7
Chassis
Colour: black or white
Dimensions: 391 x 327 x 42 mm (WxHxL
100mm VESA mount capable
Mounting hole for Kensington lock
Weight: 3.08 kg net, 4.24 kg gross
Operating system
This system comes without operating system
It is compatible with
- Windows 7 (including Embedded [1]), 32- and 64-bit
- Windows 8 / 8.1 (including Embedded [1]), 32- and 64-bit
- Windows 10, 32- and 64-bit
- Linux, 32 and 64 Bit 2
Touchscreen
Touchscreen function supports fingertip input
Resistive 5-wire single-touch technology
Including stylus for the touchscreen
39.6cm display 15.6
39.6cm / 15.6" LCD display, ratio: 16:9 wide-screen panel
Resolution: 1366x768 = 1.05 Megapixel
Backlight unit: High power LED, Luminance: 220 cd/sqm
Glass thickness: 0.5 mm
Processor
Intel® Celeron® Processor 2957U ultra low voltage
SOC with integrated chipset including controller for memory and graphics
22 nm manufacturing process, FCBGA1168 package
4th Generation Intel® Core™ Processor Codename "Haswell
Dual Core two threads
Core frequency: 1.4 GHz
L1/L2/L3 Cache size: 128 kB, 512 kB, 2 MB
Max. Thermal Design Power (TDP): 15 W
Supports 64-bit instructions, Execute Disable Bit
Intel® Virtualization Technology (VT-x) with Extended Page Tables (EPT
Enhanced Intel SpeedStep® Technology
Thermal Monitoring Technologies
Passive heatpipe cooling without any fan
Integrated Graphics
The Graphics Processing Unit (GPU) is integrated in the processor
Intel® HD Graphics core Haswell
10 Execution Units (EUs) clocked at 200 - 1000 MHz
Supports Intel® Quick-Sync-Video and Intel® Clear-Video
Supports DirectX 11.1, OpenCL 1.2 and OpenGL 4.0, Shader 5.0
Shared Memory technology
Up to three displays simultaneously
Two video outputs: HDMI v1.4 and D-Sub VGA
Supports triple display: the integrated display plus two external displays
1) Clone mode: all displays show the same content at 1366x768 resolution
2) Extended mode: all displays show different content, while the external displays run at Full HD resolution (1920x1080) maximum
BIOS
AMI BIOS in 8 MByte EEPROM with SPI interface
Supports Power fail resume / always on
Supports Wake-on-LAN (WOL) from S3, S3, S5 ACPI states
Supports hardware monitoring and watch dog functionality
Memory
SO-DIMM slot with 204 pins DDR3L-1333/1600 (PC3-10600/12800) at 1.35V
capacity: 4GB
Hard disk drive / SSD
120GB SATA SSD drive 2.5" format
Supports one drive with up to 12.5 mm height
Mini Slots
This devices comes with two mini expansion slots
1) the half size slot is occupied with a WLAN module
2) the full size slot supports a mSATA flash memory card (max. 6 Gbit/s
Card Reader
Integrated card reader supports SD, SDHC and SDXC memory flash cards
Webcam
Integrated 2.0 Megapixel (1600x1200) HD webcam
Microphone and speakers
Front panel with integrated Electret Condenser Microphone and
2x 2W speakers
Integrated Audio
Realtek ALC269 Audio Codec
Two analog audio connectors 3.5mm
1 Line-out (head phone
2 Microphone input
Digital Audio is supported via HDMI
Wired Network
RJ45 connector supports Gigabit LAN at 10/100/1000 Mbit/sec
Network controller Realtek 8111G
Supports Wake-on-LAN (WOL) from S3, S3, S5 ACPI states
Supports network boot by Preboot eXecution Environment PXE
Wireless Network WLAN
WLAN chip: Realtek 8188EE
Supports IEEE 802.11b/g/n, max. 150Mbps up-/downstream
Security: WPA/WPA2, WEP
Half-size Mini-PCIe-Card
Connectors left side
Power button
2x USB 2.0
SD card reader
Hole with power button
Hole with Clear CMOS button
Connectors bottom side
HDMI 1.4 supports digital video and digital audio
2x USB 3.0
2x USB 2.0
Gigabit Network LAN, RJ45
Audio Line-out /head phone 3.5 mm jack socket
Microphone input 3.5 mm jack socket
DC input for external power adapter 5.5 / 2.5 mm
Perforation for optional TV/3G antenna diameter: 9 mm
Connectors back side
VGA connector D-Sub 15 pol., analog video
Connectors onboard
Serial ATA 6 Gbps
Serial ATA power connector
4x USB 2.0 header three occupied, one free
Fan connector 4 pin
LVDS header Low Voltage Differential Signaling
LPC header Low Pin Count
Power adapter
External 65 W power adapter fanless
Input: 100~240 V AC, 50/60 Hz, max. 1.6 A
Output: 19 V DC, max. 3.42 A, max. 65 W

ניתן להוסיף את הכל הרכיבים מכל היצרנים לפי דרישה

יצרן :	Shuttle
גודל מסך:	15.6 אינטש
מסך מגע :	כולל
סוג מעבד:	Celeron
