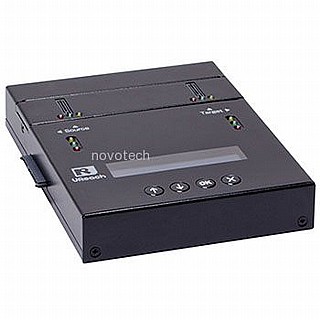

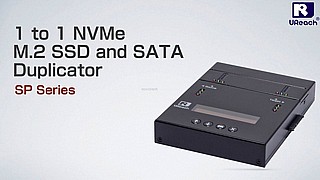

מערכת לשכפול דיסקים קשיחים מבוססי U-Reach SP10
The portable U-Reach SP101 is a hybrid PCIe duplicator/eraser with support for both NVMe and SATA protocols. The system has both M.2 NVMe and SATA master and source ports. This makes it possible to duplicate cross-interface and cross-signal with the U-Reach SP101; M.2 (NVMe) to M.2 (NVMe), M.2 (NVMe) to SATA, SATA to SATA and SATA to M.2 (NVMe).
The U-Reach SP101 duplicator/eraser offers a high copy speed of up to 9 GB per minute (150 MB/s) on all channels. With the U-Reach SP101 1-1 duplicator one copy of an M.2 or SATA master can be made at a time. The U-Reach SP101 NVMe/SATA duplicator works stand-alone, no computer or software required. Operating the unit is easy; all functions are controlled via the function keys and the LCD display.
The portable SP101 duplicator/eraser offers four different copy functions; "Quick Copy", "All Partitions Copy", "Percentage Copy" and "Whole HDD Copy". The Quick Copy function supports the following formats; FAT16/32, exFAT, NTFS, Linux (ext2/ext3/ext4) and Mac (HFS, HFS +, HFSX). In addition to duplicating, the SP101 duplicator can also be used to erase M.2 and SATA modules. Four Erase functions are available for this; Quick Erase, Full Erase, Secure Erase and DoD Erase.
The modular socket design of the U-Reach SP101 duplicator offers "Cable Free" connectors. NVMe M.2 modules and SATA HDD/SSD's can be connected directly to the connectors of the duplicator. Optional adapters are available for use with MAC PCIe SSD, mSATA and CFast
Portable PCIe M.2/SATA duplicator, no PC connection or software required
- Supports both NVMe and SATA protocol
- Cross-signaal and cross-interface duplication
- Cable Free M.2 en SATA connections
- Easy operation with buttons and LCD display
- Maximum copy speed up to 9 GB per minute, per port
- Quick Copy and Whole Media Copy
- Supports Advanced Format HDD (15 TB+) and GPT, MRB table format
- Complete set of sanitization options; Quick, Full, Secure and DoD Erase
- Optional adapters for MAC PCIe SSD, mSATA and CFast
- Open Platform design for easy media exchan
| Model |
U-Reach M.2 NVMe / SATA Hybrid 1-1 duplicator/eraser
Productcode : SP101 |
| Ports |
1x M.2 NVMe master port, 1x M.2 NVMe target port
1x SATA master port, 1x SATA target port |
| Speed |
Maximum 150 MB/s (9 GB/min) per port (depending on the media used) |
| Capacity |
Supports Advanced Format HDD (15 TB+) and GPT, MRB table format |
| Connection |
- Standalone operation without computer or software |
| Language support |
English, Japanese |
| Operation |
- Display: monochrome LCD
- Status LED: (red / green / yellow) on each SATA port
- Operation keys: 4 pushbuttons (up, down, OK, ESC) |
| Supported media |
- Native: M.2 (NGFF) M key and B+M key or SATA devices
- With optional adapters: MAC PCIe SSD, mSATA, CFast etc. |
| Suported signals |
NVMe, AHCI/SATA (Auto Detect, cross-interface) |
| Standard functions |
- Copy: Quick Copy, All Partitions Copy, Percentage Copy and Whole HDD Copy
- Compare: Bit by Bit data compare
- Erase: Quick Erase, Full Erase, Secure Erase (NIST 800-88) en DoD Erase (5220.22-M) |
| Supported formats |
- Quick Copy: FAT16/32, exFAT, NTFS, Linux (Ext2/Ext3/Ext4), MAC (HFS, HFSX, HFS+)
- Whole Media Copy: all formats |
| Supported file systems |
All (Windows, Macintosh, Linux, Unix etc.) |
| Power supply |
Switchable power supply 115VAC or 230VAC, 50/60Hz |
| Temperature and humidity |
- In use: 5°C ~ 45°C (RH: 20% ~ 80%)
- Not in use: -20°C ~ 85°C (RH: 5% ~ 95%) |
| Dimensions |
18,0 x 15,6 x 3,4 cm (LxBxH) |
| Weight |
1,2 kg |
| Certification |
FCC, CE, RoHS |
