• Fanless and silent
  Completely fanless, virtually noiseless
  Large aluminium heatsink
  Passive cooling through the convective heat transfer
  Ideal for noise-sensitive environments
  Fanless means less dust inside the case and thus virtually no maintenance required.
• 24/7 Nonstop Operation
  This device is approved for 24/7 permanent operation.
  Requirement: Free air circulation around the PC must be guaranteed.
  This device comes without a power-on button. The boot process starts as soon as power is applied. [1]

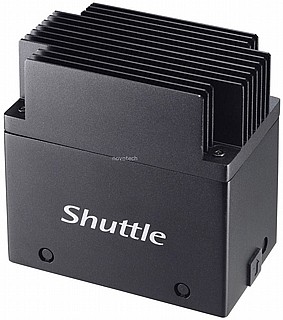

• Chassis
  Black chassis made of aluminium and steel
  Dimensions: 92.4 × 54.4 × 90 mm (LWH) = 450 ml
  (Height including rubber feet)
  Weight: 0.48 kg net and 1.03 kg gross
  With hole for Kensington Lock
  IP protection rating: IP20
• Operation Positions
  1) Mounted on a DIN-Rail (e.g. inside equipment racks)
  2) Vertical (e.g. VESA-mounted behind an appropriate monitor)
  3) Standing on its rubber feet as a desktop PC
• Operation System
  This system comes without operating system.
  It is compatible with:
  - Windows 10 (64-bit)
  - Linux (64-bit)
• Processor
  Intel® Celeron® Prozessor J3355, Dual Core
  CPU clock frequency: 2.0 GHz, max. Turbo frequency: 2.5 GHz
  Code name: "Apollo Lake"
  14 nm structure, FCBGA1296 package (soldered)
  CPU cores / Threads: 2 / 2
  L2 Cache: 2 MB
  Thermal Design Power (TDP): 10 W
  Supports x86-64, AES-NI, VT-x (EPT), VT-d
  System-on-Chip processor (SoC) with integrated graphics processor, no additional chipset required
  Fanless cooling system
• Integrated Graphics
  The Graphics Processing Unit (GPU) is integrated into the processor.
  Intel® HD Graphics 500 (Intel Gen 9), graphics frequency: 250~700 MHz
  Supports DirectX 12, Intel Quick Sync Video, Intel Clear Video (HD), Shared Memory
  Execution Units (EU): 12
• UEFI Firmware
  16 MB Flash ROM with AMI UEFI BIOS Firmware
  Based on the Unified Extensible Firmware Interface (UEFI)
  Supports Wake-on-LAN (WOL) from S3, S4, S5 ACPI states
  Supports boot up from external flash memory cards (USB or SD card)
  Embedded Firmware TPM v2.0 (fTPM), can be activated in BIOS setup
  Supports Hardware Monitoring and Watchdog functionality (fixed timer)
• RAM Memory
  4 GB LPDDR4 memory (2400 MHz), soldered
• Flash Memory
  64 GB eMMC flash memory
  Expandable via Micro SD card
• M.2 expansion slot
  The M.2-3042 B-key expansion slot provides the following interfaces:
  1) PCI-Express Gen. 2.0 X1
  2) SATA v3.0 (max. 6 Gbps)
  3) USB 3.2 Gen 1
  The following components can be used in this slot:
  1) optional HDMI capture card MCAP01 [3] or
  2) optional LTE/4G module [4] or
  3) optional WLAN module [5] or
  4) M.2-2242 SSDs with SATA- or PCIe/NVMe interface (B+M key required, only M key is not compatible)
  Note: Please go to the "Advanced" tab in the BIOS setup and set "M.2 Device Select" to "PCIe" or "SATA" according to the type of M.2 card used.
• SIM expansion slot
  A nano-SIM card can be installed in an appropriate slot directly on the mainboard. The SIM card can be used in combination with an optional LTE/4G module that is to be installed in the M.2-3042 slot [4].
• Micro SD Card Reader
  Integrated card reader
  Supports Micro SD, Micro SDHC and Micro SDXC memory cards
  Supports booting from SD card
• Wired Network
  RJ45 connector supports Gigabit LAN at 10/100/1000 Mbit/s.
  Realtek RTL8119I-CG Ethernet Controller
  Supports Wake-on-LAN

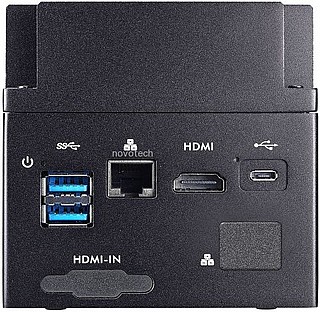

• Connectors and LED
  - Power LED [1]
  - HDMI 1.4b digital video and audio output
  - 2× USB 3.2 Gen 1 Type A
  - Micro USB 2.0
  - Micro SD card reader
  - Gigabit network port (LAN, RJ45)
  - DC input (2-pin Euroblock)
  - 4× perforated 6.5 mm holes for optional LTE/4G antennas
  - Optional: second Gigabit network port [2]
  - Optional: HDMI input [3]
  - Hole for Kensington Lock
• Onboard I/O connector
  34-pin header "J1" with I/O ports as follows:
  - Power Button (pin 11)
  - Reset Button (pin 13)
  - Always-on function (pin 29-30 shortened by jumper)
  - RS232 3.3V (pin 2, 4, 6, 8)
  - RS232/422/485 3.3V (pin 31, 32, 33, 34)
  - 4× GPIO 1.8V (pin 21 ,23, 25, 27)
  - I²C bus (pin 22, 24)
  Reserved pins:
  - UART 3.3V (Pin 1, 3, 5, 7): Debug Port
  - Recovery (Pin 15): no function
  Note: The onboard connector "CN5" (CanBus) cannot be used.
• DC Input connector
  The 2-pin Euroblock connector supports 12~19V of DC input voltage.
  The included Phoenix connector enables a DC cable to be connected via terminal strip.
  In addition, the included adapter cable allows a power adapter with a 5.5 / 2.5 mm DC plug to be connected.
  The recommended minimum output wattage of the power adapter is:
  - 40 W, if the accessory PSE01 is not used.
  - 65 W, if the accessory PSE01 is installed.
• Power Supply via PoE (optional)
  The PC is powered either via the DC input connector or via PoE (Power over Ethernet). The PoE function can be added with the optional Shuttle accessory PD01 [2].
  The Power Soucing Equipment (PSE, e.g. PoE switch or injector) should be capable to deliver at least 48V DC / 0.65A.
• Supplied Accessories
  - Multi-language user guide (EN, DE, FR, ES, JP, KR, SC, TC)
  - Driver DVD (Windows 10, 64-bit)
  - Bracket for VESA and DIN-Rail mounting
  - Two screws M3 × 4 mm (attaches the mounting bracket to PC)
  - DIN-Rail clip
  - Two screws M3 × 4 mm (attaches the mounting bracket to DIN-Rail clip)
  - VESA mount for 75 / 100 mm standard
  - Four screws M4 × 10 mm (to affix VESA mount on PC)
  - Two screws M3 × 5 mm (to mount an M.2 card)
  - 2-pin Phoenix connector
  - DC adapter cable (connects the Phoenix connector to a 2.5 / 5.5 mm coaxial DC plug of a power adapter)
  Note: A power adapter is not included.
• Optional Accessories
  - PD01: PD daughterboard to power EN01B by PoE (48V DC, 0.65A) [2]
  - PSE01: PSE daughterboard - EN01B acts as a PoE power source (48V DC, 0.5A) [2]
  - MCAP01: HDMI capture card in M.2-2242 format with HDMI cable [3]
  - WWN01: Set with two LTE/4G antennas and antenna cables [4]
  - LN007 and WLN-M: WLAN kit with WLAN card, M.2 adapter and two antennas [5]
  - PE90: Power Adapter (19V / 90W)
• Environmental Specifications
  Operating temperature range: 0 ~ 50 °C
  Relative humidity range: 10 ~ 90 % (non-condensing)
  Warning: Never touch the heatsink during or just after operation, as it can get very hot during normal operation. Be sure to wait for the heatsink to cool off before touching it.
• Certification and Compliance
  EMI: FCC, CE, BSMI, VCCI, RCM
  Safety: ETL, CB, BSMI
  Other: RoHS, Energy Star, ErP, IP20
  This device is classed as technical information equipment (ITE) in class B and is intended for use in the living room and office. The CE-mark approves the conformity by the EU directives:
  (1) 2014/30/EU relating to electromagnetic compatibility (EMC),
  (2) 2014/35/EU relating to Electrical Equipment designed for use within certain voltage limits (LVD),
  (3) 2009/125/EC relating to eco-design requirements for energy-related products (ErP),
  (4) 2014/53/EU Radio Equipment Directive (RED)
