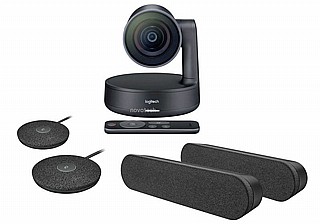

מצלמה לשיחות וועידה RALLY PLUS מבית LOGITECH

מצלמה לשיחות וועידה RALLY PLUS מבית LOGITECH

• DIMENSIONS

  Rally Camera

  • Height x Width x Depth
  • 7.19 in (182.5 mm) x 5.88 in (152 mm) x 5.88 in (152 mm

  Rally Speaker

  • Height x Width x Depth:
  • 4.05 in (103 mm) x 3.15 in (449 mm) x 3.15 in (80 mm)

  Rally Mic Pod

  • Height x Width x Depth:
  • 0.83 in (21 mm) x 4.01 in (102 mm) x 4.01 in (102 mm)

  Rally Display Hub

  • Height x Width x Depth:
  • 1.57 in (40 mm) x 8.11 in (206mm) x 7.05 in (179 mm)

  Rally Table Hub

  • 1.57 in (40 mm) x 6.93 in (176mm) x 5.43 in (138 mm)

  SYSTEM REQUIREMENTS

  Operating Systems

  • Windows® 7, Windows 8.1 or Windows 10
  • macOS®: 10.10 or higher

  Chrome OS™

  Resolutions higher than 1080p

  • Windows 8.1 or higher or macOS 10.10 or higher
  • USB 3.0 port and Type C cable
  • Compatible software

  RIGHTSENSE TECHNOLOGIES

  RightLight with WDR

  • Low-light compensation
    Video noise reduction
    Low-light saturation optimization
    Renders natural skin tones for each participant on camera
    Reduces backlighting and glare without darkening the entire image.

  RightSight1

  • Human figure detection
    Auto-frame participants at meeting start
    Auto-frame participants on-demand
    Auto-reframe participants during meetings 1

  RightSound

  • Machine learning AI trained to distinguish human speech from other sounds
    AEC (Acoustic Echo Cancellation)
    VAD (Voice Activity Detector)
    Background noise suppression
    Auto-level loud and soft voices

  RightSound Mic Matrix

  • • Very low distortion broadside beamforming algorithm steers the factory-paired microphones directly at the talker for the best voice pickup and noise reduction
    • Supports up to 56 acoustic beams (8 per Rally Mic Pod) to lock onto the active talker
    • Beam focus refresh rate: 8ms (125 times/second)

  Anti-Vibration Suspension:

  • • A patent-pending suspension system decouples the speaker module within the external enclosure, virtually eliminating the vibrations that can travel through walls, stands, and tables. This improves the echo cancelling performance of Rally Mic Pods, while ensuring that video images remain clear and steady, even at high volume levels and when zoomed in.
    • Peak-limiting algorithm eliminates even momentary speaker clipping to prevent distortion

• TECHNICAL SPECIFICATIONS

  RALLY CAMERA

  • Ultra-HD imaging system supports:

    • 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
    • 1080p, 720p at 30fps and 60 fps

  • Smooth motorized pan, tilt and zoom

  • Pan: ±90°

  • Tilt: +50° / -90°

  • 15x HD zoom

  • 90° field of view

  • Autofocus

  • 3 camera presets

  • Kensington security slot

  • Video mute/unmute LED indicator

  • Standard tripod thread

  • Lens parks at -90° in sleep mode for assured privacy

  RALLY MIC POD

  • Pickup range: 15 ft / 4.5m diameter
    Four omnidirectional microphones forming eight acoustic beams
    AEC (Acoustic Echo Cancellation)
    VAD (Voice Activity Detector)
    Background noise suppression
    Mute button with LED status indicator
    Captive 9.6 ft (2.95m) 12-pin cable
    Daisy chain up to 7 Rally Mic Pods
    Frequency response: 90Hz – 16kHz
    Sensitivity: >-27dB +/-1dB @ 1Pa
    Microphone data rate: 48 kHz

    Recommended # of participants:
    Rally (one Mic Pod): 10
    Rally Plus (two Mic Pods): 16
    Additional participants per Mic Pod: 6
    Recommended participants for Rally with 7 Mic Pods: 46

  RALLY SPEAKER

  • High-performance 3”" (76mm) driver with rare-earth magnet
    Patent-pending suspension system eliminates vibration-induced camera shake and audio interference
    Mini XLR cable connects to Rally Display Hub for both signal and power
    Speaker volume 95dB SPL @1W, 100dB SPL @7.5W, both +/-2dB at ½ meter
    Sensitivity: 95+/-2dB SPL at ½ meter
    Distortion: 200Hz–300Hz < 2.5%, 300Hz–10kHz < 1%@7.5W
    Speaker sampling rate: 48 kHz

  RALLY TABLE HUB

  • Single CAT6A cable connection to Rally Display Hub (16.4 ft / 5m cable included, supports customer-supplied cables up to 164 ft (50 m)
    Active speaker detection: analyzes audio from up to 7 Mic Pods and 56 beams every 8ms
    12 Pin connector for Rally Mic Pod
    HDMI Type A passthrough to Display Hub (x2)
    USB Type C
    USB Type A (reserved for future capability)
    USB Type B (connects to meeting room computer)
    RJ45 (reserved for future capability)
    Power input

  RALLY DISPLAY HUB

  • HDMI Type A (x2) (connects to displays)
    USB C (connects to Rally Camera)
    USB Type B (connects to meeting room computer)
    RJ45 (connects to Table Hub)
    Mini XLR (x2)
    Powers one or two Rally Speakers
    Power input

  REMOTE CONTROL

  • RF remote control (line of sight not required)

  • CR2032 batteries (included)

  CABLES / POWER

  • Camera to Display Hub
    6.5 ft (2m) USB 3.1 Type C to USB Type C 3.1

    Conference Room Computer to Display or Table Hub
    6.5 ft (2m) USB 3.1 Type A to USB Type B

    Display Hub to Table Hub
    16.4 ft (5m) CAT6A Ethernet cable (supports customer-supplied cables up to 164 ft (50 m)

    Display Hub to Speaker (x2)
    9.6 ft (2.95m) Mini XLR (supports customer-supplied extension cables up to 9.8 ft (3m)

    Conference Room Computer to Displays (x2)
    6.5 ft (2m) HDMI A

    Mic Pod
    9.6 ft (2.95m): Hardwired with 12 pin connector

    Power Outlets to Power Supplies (x2)
    3.2 ft (1m)

    Power Supplies to Table Hub / Display Hub (x2)
    4.9 ft (1.5m)

  AVAILABLE ACCESSORIES

  • RALLY MOUNTING KIT
    Rally Mounting Kit with cable retainers (x2) and mounting brackets for camera, speakers (x2), and hubs (x2)

    RALLY MIC POD
    Deploy up to 7 Rally Mic Pods for greater audio coverage in larger rooms

    RALLY MIC POD HUB
    Connect 1-3 Rally Mic Pods (or additional hubs) for placement flexibility and under-table cabling

    RALLY SPEAKER
    Add a second Rally Speaker for larger rooms

  COMPATIBILITY AND CERTIFICATIONS

  • Plug-and-play USB connectivity

  • Certified for Skype for Business and ready for Teams

  • Zoom Certified

  • Certified for Google Hangouts Meet Hardware

  • Microsoft Cortana® certified

  • Cisco Jabber® and WebEX Compatible

  • Compatible with BlueJeans, BroadSoft, GoToMeeting, Vidyo, and other video conferencing, recording, and broadcasting applications that support USB cameras

• PACKAGE CONTENTS

  • Logitech Rally
    Rally Camera
    Rally Display Hub
    Rally Table Hub
    Rally Speaker (x1)
    Rally Mic Pod (x1)
    Remote control
    USB Type C to USB Type C
    USB Type A to USB Type B
    CAT6A Ethernet cable
    HDMI Type A (x2)
    A/C cables (x2)
    Power Supplies (x2)
    Documentation

    Logitech Rally Plus
    Rally Camera
    Rally Display Hub
    Rally Table Hub
    Rally Speaker (x2)
    Rally Mic Pod (x2)
    Remote control
    USB Type C to USB Type C
    USB Type A to USB Type B
    CAT6A Ethernet cable
    HDMI Type A (x2)
    A/C cables (x2)
    Power Supplies (x2)
    Documentation
