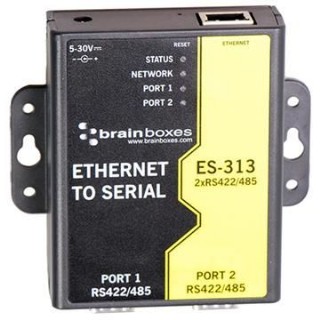

מתאם 2 יציאות RS422/485 Ethernet to Serial Adapter דגם ES-313

מתאם רשת ל 2 יציאות RS232/485
כולל ספק כח חיצוני
Ethernet to Serial Device Server
Data rate from 110 to 1,000,000 baud
User friendly interface, simple to use, powerful in operation
Serial Port Tunnelling allows serial cable replacement over any dist

חבילה מומלצת

צרו קשר

תיאור מוצר

חוות דעת

מאפיינים ושידרוגים:

פרטים נוספים:

  • מקט: 1551
  • אחריות: 12 חודשים
  • אחריות: ע"י נובוטק
  • זמן אספקה: עד21ימי עסקים
  • אפשרויות משלוח:
    אפשרויות משלוח למוצר לבחירה בקופה:
    • איסוף עצמי בחינם
    • דואר רשום 25.00 ₪
    • משלוח עד הבית עם שליח 45.00 ₪
    • משלוח מהיר תוך 24 שעות - ליעדים בין חדרה לגדרה 85.00 ₪
    • משלוח לנקודת איסוף - חבילות קטנות 19.00 ₪
    סגירה

מחיר   ₪ 1,877.00 ILS 8/7/2027 In stock brainboxes 1551 1551

קנה עכשיו הוסף לסל
  • +
  • -
visaisracardmastercarddinersamerican express
  • אזל במלאי



מפרט טכני :


  •  Port RS-422/485
  • Ethernet to Serial Device Server
  • Data rate from 110 to 1,000,000 baud
  • User friendly interface, simple to use, powerful in operation
  • Serial Port Tunnelling allows serial cable replacement over any distance, no software required
  • (Power supply included (power input 5-30V DC

Description

Ethernet to Serial device server providing access to two RS422/485 serial ports. Data transfer rates up to 1,000,000 baud, coupled with 1Mbit/s line drivers deliver uncompromising performance. Our ES range provides simple instant networked serial ports. RS485 - 1 twisted pair - half duplex configuration with autogating provides trouble free data transmission due to automatic control of data direction. A web interface allows secure configuration and control of the serial ports over a local network or the internet using any browser. For Windows our in-house designed (32 bit and 64 bit) driver gives you local COM ports, retaining existing software applications and allowing you to connect across your network to remote devices just as if they were attached locally. Serial Port Tunnelling (individually configurable) allows serial cable replacement over any distance, no software required. You can access the device via TCP/IP sockets from any networked device like an Android tablet, PC or phone. On Windows OS TCP/IP sockets are handled by the Winsock API, this will differ on other OSs

Tech Spec

Serial Port
Ports 2
Protocol RS422/485
Connector DB9 Connector - 9 Pin Male
Tx FIFO Size 4096
Rx FIFO Size 2048
Operating Distance RS422/485 Standard (4000 ft : 1200 metres)
Cable No Cable; Integrated Connector
Serial Port Settings
Max Baud Rate 1,000,000 (1 MegaBaud)
Data Bits 5,6,7 or 8
Parity Odd, Even, None, Mark or Space
Stop Bits 1 or 2
Flow Control RTS/CTS, XON/XOFF
Tx/Rx Modes Full Duplex, Half Duplex Autogating - Hardware Autogating
Power
Power Input 5 - 30V DC input, reverse polarity protected
Power Over Ethernet No - this product does not have PoE capability
Power Supply 1 Description Global Power Supply - PW-800
Power Supply 2 Description
General
Mounting Accessories 1 Description DIN-Rail Mounting Kit - MK-048
Mounting Accessories 2 Description
PCB Layers 4
Operating Temperature Range 0 °C to +60 °C / 32 °F to +140 °F
Device Dims with ears 96.3x101x25
Device Dims without ears 91.6x77x25
Power Consumption 1.06W Typical, 2.6W Max
Product Weight 0.129 kg, 4.55 ounces
Product Dimensions 106x105x28 mm, 4.2x4.1x1.1 inches
Packaged Weight 0.467 kg, 16.47 ounces
Packaged Dimensions 200x135x80 mm, 7.9x5.3x3.1 inches
GTIN (barcode) 837324002294
Operating System Compatibility
Operating Systems
  • Microsoft Windows 10
  • Microsoft Windows 7 32 bit & 64 bit Editions
  • Windows Server 2008 32 bit & 64 bit Editions
  • Windows Vista 32 bit & 64 bit Editions
  • Windows XP 32 bit & 64 bit Editions
  • Microsoft Windows 2000
Interface
Ethernet Ethernet Interface takes advantage of a companies pre-existing infrastructure, allowing you to connect to your Brainboxes device over the local network, or from across the world
