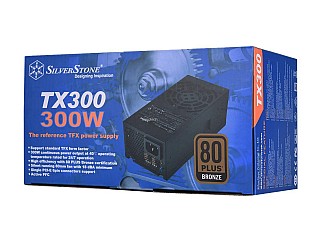

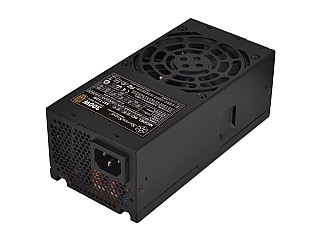

ספק כח SILVERSTONE SST-TX300 300W TFX 80 PLUS BRONZE Certified Active PFC

Details

Type

TFX (Compatible with ATX12V v2.4)

Maximum Power

300W

Fans

1 x Silent Running 80mm Fan with 18 dBA Minimum

PFC

Active

+12V Rails

2

PCI-Express Connector

1 x 6-Pin

SATA Power Connector

4

Efficiency

82% - 85% at 20% - 100% loading

Energy-Efficient

80 PLUS BRONZE Certified

Over Voltage Protection

Yes

Input Voltage

90 - 264 V

Input Frequency Range

47 - 63 Hz

Output

+3.3V@15A, +5V@16A, +12V1@14A, +12V2@15A, +5VSB@2.0A, -12V@0.3A

MTBF

100,000 hours

Dimensions

2.56" x 3.35" x 6.89"

Weight

2.20 lbs.

Features

Connectors

1 x 24 / 20-Pin motherboard connector (350mm)
1 x 8 / 4-Pin EPS / ATX 12V connector (450mm)
1 x 6-Pin PCIE connector (350mm)
4 x SATA connector ("350mm / 150mm" x 2)
2 x 4-Pin Peripheral connector (350mm / 150mm)
1 x 4-Pin Floppy adapter connector (350mm / 150mm / 150mm)

Features

Support standard TFX form factor

300W continuous power output at 40 Degree C operating temperature rated for 24/7 operation

High efficiency with 80 PLUS Bronze certification

Silent running 80mm fan with 18 dBA minimum

Single PCI-E 6pin connectors support

Active PFC

Over Power Protection / Over Voltage Protection / Short Circuit Protection
