עמדת קיוסק לבניה עצמית ViewSonic EP5520

עמדת קיוסק לבניה עצמית ViewSonic EP5520

The ViewSonic® EP5520 is a 55” all-in-one free-standing digital ePoster kiosk with a sleek, slim design. Great for grabbing attention in busy, high-traffic areas, the EP5520 comes with a scratch-proof tempered glass faceplate for added durability. Featuring Full HD 1080p resolution, 176°/176° wide-angle viewing, 400-nit brightness, 4,000:1 contrast ratio, and dual 10W stereo speakers, the EP5520 delivers customized multimedia messaging with vivid clarity. Photo and video files can be played back using the embedded Quad-core media player and 16GB of internal memory, or add your own media player using the convenient media player cradle inside the lockable security door

DISPLAY SIZE (IN.)

55

Audio

INTERNAL SPEAKERS

10W (x2)

Connector

3.5MM AUDIO IN

1

ETHERNET LAN (RJ45)

1

HDMI 1.4

2

VGA

1

CONTROL (RS232)

1

USB 2.0 TYPE A

3

USB 2.0 TYPE B

1

Embedded Player

CPU

USB Supported internal media player

Power

VOLTAGE

100-240 VAC

CONSUMPTION (TYPICAL)

115W

STAND-BY

<.5W

Operating Conditions

TEMPERATURE

32-104º F (0–40º C)

HUMIDITY (NON-CONDENSING)

20-80%

Dimensions (imperial) (wxhxd)

PACKAGING (IN.)

38.7x79.3x24.3

PHYSICAL (IN.)

32.2x74.8x17.7

Dimensions (metric) (wxhxd)

PACKAGING (MM)

983x2016x618

PHYSICAL (MM)

812x1900x450

Weight (imperial)

GROSS (LBS)

183

NET (LBS)

150

Weight (metric)

GROSS (KG)

83

NET WITHOUT STAND (KG)

68

Controls

ON SCREEN DISPLAY

Picture Mode, Contrast, Brightness, Hue, Sharpness, Saturation, Anti-Flicker, Backlight, Screen, Color temperature, Bluelight Filter, Zoom Mode, OverScan, Image NR

REMOTE CONTROL

Sound Mode, Bass, Treble, Balance, Surround, Alone, MHL Auto Switch, Menu Timeout, Data/Time, Off Timer, On Timer, Sleep Time, Set Password, System ID, Lock Keypad, LowerPower Standby, Restore To Default

Controls Embedded Player

INTERFACE

OSD / Remote Control

General

REGULATIONS

FCC/cTUVus /TUV-Mexico CoC/Mexico Energy/CE EMC/CB/ErP/PSB/RCM/BSMI

PACKAGE CONTENTS

Power Cord, Remote control with battery, Quick start guide, User's Guide, Door key

RECYCLE/DISPOSAL

Please dispose of in accordance with local, state or federal laws.

WARRANTY

One-year limited warranty on parts, labor and backlight

Dimensions:32x75x18 in / 812x1900x450 mm

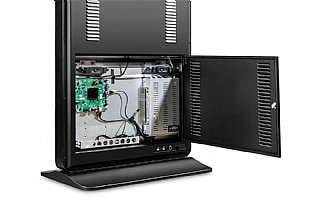

1. Lockable Rear Door
2. Media Player Cradle
3. VGA In
4. HDMI In (x2)
5. LAN
6. USB 3.0 (x2)
