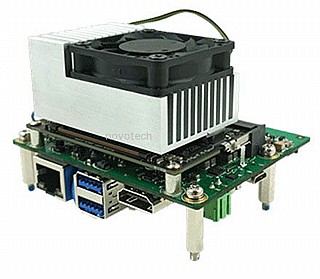

ערכת פיתוח AVerMedia D111NX development system

ערכת פיתוח AVerMedia D111NX development system,

Engineering Kit built with NVIDIA Jetson Xavier NX Module

חבילה מומלצת

לרכישת מוצר זה התקשרו לקבלת פרטים

Model	D111NX
Type	Engineering Kit
NVIDIA GPU SoC Module Compatibility	NVIDIA® Jetson Xavier™ NX module
Networking	1x GbE RJ-45
Display Output	1x HDMI output 3840 x 2160 at 60Hz
Temperature	Operating temperature 0°C~70°C Storage temperature -40°C ~ 85°C Relative humidity 40 °C @ 95%, Non-Condensing
MIPI Camera Inputs	• 2x 2 lane MIPI CSI-2, 15 pin FPC 1mm Pitch Connector • 1x 4 lane MIPI CSI-2, 36 pin FPC 0.5mm Pitch Connector
USB	1x USB 2.0 Micro-B for recovery 2x USB 3.0 Type-A
Storage	1x micro-SD card slot
Expansion Header	20 pins: 2x I2C, 1x UART, 9x GPIOs
Input Power	3.5mm Screw Terminal; 12V/5A
Buttons	Power and Recovery
RTC Battery	Support RTC battery and Battery Life Monitoring by MCU
PCB/Electronics Mechanical Info	W: 87mm x L: 70mm x H: 58.2mm Weight: 175g
Certifications	CE, FCC, KC
Package	1x Carrier Board 1x NVIDIA® Jetson Xavier™ NX module 1 x Fan 1 x Power cable 1x Quick Guide Screws
