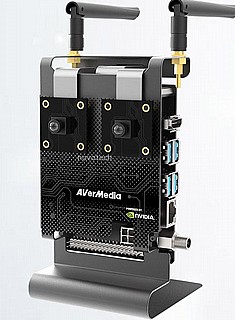

ערכת פיתוח AVerMedia Engineering Kit D131OXB

NVIDIA Jetson SoM

Jetson Orin NX / Jetson Xavier™ NX / Jetson Nano

Networking

1x GbE RJ-45 (PoE option)

1xM.2. key E 2230 for Wi-Fi (Nano doesn't support)

Display Output

1x HDMI 2.0 (3840 x 2160 at 60Hz)

Temperature

Operating temperature 0°C~60°C (TBD)

Storage temperature -40°C ~ 85°C

Relative humidity 40 °C @ 95%, Non-Condensing

MIPI Camera Inputs

2x 2 lane MIPI CSI-2, 15 pin FPC 1mm Pitch Connector

1x 4 lane MIPI CSI-2, 36 pin FPC 0.5mm Pitch Connector

USB

1x USB 2.0 Micro-B for recovery

4x USB 3.1 Gen 1 Type A

Storage

1x M.2. key M 2280 for SSD

1x micro-SD card slot (Orin NX doesn't support)

Expansion Header

40-pin:  1x UART, 2x  SPI, 2x 12C, 1x I2S, GPIOs

1x CAN

Input Power

DC in jack on board & ATX 4-pin

12V/5A, 9V~24V is recommended

Power Cord

US/JP/EU/UK/TW/AU/CN

Thermal Solution

Fan

Buttons

Power and Recovery

RTC Battery

Support RTC Battery and Battery Life Monitoring by MCU

Dimensions

157mm(W) x 105mm(L) x 85mm(H) with stand (without antenna)

Certifications

CE, FCC, KC

Package

1 x Carrier Board
1 x NVIDIA® Jetson module + Fan
1 x Stand
1 x Power cord and Adapter set

1 x 256G SSD
2 x APPRO.PHO IMX179 Camera
