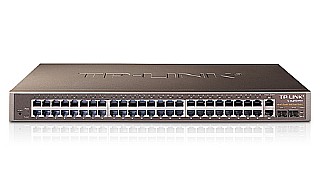

øëæú øùú/îîúâ TP-Link TL-SL2452WEB

Software Specification

Standards and Protocols

 IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3ad, 802.3x, 802.1q, 802.1p

Basic Function

 MAC Address Auto-Learning and Auto-aging

 Storm Control (Broadcast, Multicast, Unknown unicast)

 Limit Rate

 Port Mirroring

MAC Address Table

 8k

Switching Capacity

 17.6Gbps

Transmission Method

 Store-and-Forward

Priority

 Port based Priority

 IEEE 802.1p based Priority: 4 Queues

 IP DSCP based Priority

Link Aggregation

 IEEE 802.3ad LACP Link Aggregation

VLAN

 Port Based VLAN

 802.1Q Tag-VLAN

 MTU VLAN

Access Control List

 Based on Port

 Based on MAC

Security & Authentication

 Port Security

 Statick MAC Address Binding

 Dynamic MAC Address Binding

Network Management

 Web (Http) Management

 Remote Management

System Function

 Fixed IP Address Setting

 VCT (visual cable test )

 Port Flow Statistics

 TFTP Upgrade

Hardware Specification

Ports

 48 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)

 2 10/100/1000Mbps Auto-Negotiation RJ45 port (Auto MDI/MDIX)

 2 Gigabit SFP ports

Network Media

 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
 EIA/TIA-568 100Ω STP (maximum 100m)
 100BASE-TX/1000Base-T: UTP category 5, 5e cable (maximum 100m)
 EIA/TIA-568 100Ω STP (maximum 100m)
 1000BASE-X: MMF, SMF

LED Indicators

 Power, System, Link/Act, 100M, 1000M,

Safety & Emission

 FCC, CE

Dimensions (W*D*H)

 17.3*10.2*1.7 in. (440*260*44 mm)

Environment

 Operating Temperature: 0℃~40℃ (32℉~104℉)
 Storage Temperature: -40℃~70℃ (-40℉~158℉)
 Operating Humidity: 10%~90% non-condensing
 Storage Humidity: 5%~90% non-condensing

Power

 100-240VAC, 50/60Hz
