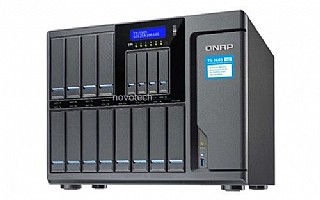

שרת קבצים QNAP TS-1685
Supporting up to twelve 3.5" HDDs and four 2.5" SSDs, the TS-1685 is a high-capacity, robust, and reliable business NAS powered by an Intel® Xeon® D processor. Designed to optimize enterprise IT infrastructure, the TS-1685 comes with three PCIe slots that support 10GbE/40GbE NIC, PCIe NVMe SSD, graphics cards, and USB 3.1 expansion cards. Incorporating security and scalability, the TS-1685 presents an ideal choice for a complete business-ready storage solution with cross-platform file sharing, comprehensive backup and disaster recovery, iSCSI & virtualization, and more business applications.
The TS-1685 supports up to 16 hard drives, providing the storage potential to be a high-capacity data center. Its high-quality hardware enables optimum performance to fulfill diversified application needs.
Epic storage potential with flexible high-capacity HDDs and high-performance SSDs.
Native high-speed SATA 6Gb/s empowers SSD caching.
Provides real-time system information for easier system management.
Press the “Copy” button to instantly back up data from external drives to the NAS, or alternatively to back up data from the NAS to external drives.
Supports SATA 6Gb/s M.2 SSD with 2242, 2260, 2280, and 22110 form factors to provide the greatest flexibility in tiered storage configuration and enables cache acceleration. The TS-1685 features M.2 cooling modules for keeping the M.2 SSDs cool and stable.
Featuring the latest 14nm energy-efficient SoC, supporting DDR4 RAM and PCIe Gen.3 per-lane throughput.
Supports four DDR4 memory modules for a maximum of 128GB RAM. Comes preinstalled with 16GB/32GB/64GB/128GB RAM.
Two PCIe Gen3 x8 slots and one PCIe Gen2 x4 slot. Supports 10GbE/ 40GbE adapters, PCIe NVMe SSD, external graphics cards, and USB 3.1 expansion cards.
Connect speakers or headphones for direct audio output from the NAS.
Ideal for service binding, port trunking and MPIO configurations.
Fully supports 10GbE high-speed networks for iSCSI/NFS/CIFS data transmission.
Separately detects the CPU and hard drive temperatures to dynamically control fan speeds for quieter operations.
Supports direct audio output and provides verbal system warnings.
The TS-1685 is powered by a high-performance Intel® Xeon® D multi-core processor with up to 128GB DDR4 RAM (comes preinstalled with 16GB/32GB/64GB/128GB RAM), delivering outstanding performance with up to 2,339 MB/s throughout to enhance the efficiency of CPU-demanding applications such as virtualization and large numbers of simultaneous connections.
Tested in QNAP Labs. Figures may vary by environment.
Test environment:
NAS:
OS: QTS 4.3.3
Volume type: RAID 5; 12x Intel SSD DC S3500
Network environment: direct connection between NAS and two PCs, 10GbE with built-in 10GBase-T ports (MTU 9000)
Client PCs:
Intel(R) Core(TM) i7-4790 3.60GHz CPU; DDR3 1600Hz 16GB; Seagate ST500DM002; 10GbE with QNAP LAN-10G2T-X550 dual-port PCIe NIC (MTU 9000); Windows® 10 Professional 64bit SP1
IOMeter configuration: Transferring 128GB file continuously to/from 2 PCs for 3 minutes. Block size: 64KB for SMB2.1 (Throughput)
The TS-1685 provides four 2.5” SSD slots dedicated for caching to increase IOPS performance, and supports higher transfer speeds and reliability with optional six M.2 SATA 6Gb/s SSDs. Using an SSD cache boosts overall system performance, and is perfect for improving the overall workflow of random IOPS demanding applications such as virtualization. QNAP’s Qtier Technology empowers the TS-1685 with Auto Tiering that further helps continuously optimize storage efficiency across M.2 SSD, SSD, high-capacity SATA drives, and the optional PCIe NVMe SSD with around-the-clock acceleration. Qtier now supports “On Demand Allocation Priority”, providing customizable flexibility to arrange tiered storage suited for your system environments and application demands.
| CPU | TS-1685-D1521-16G/TS-1685-D1521-32G/TS-1685-D1521-32G-550W: Intel® Xeon® Processor D-1521, 4-core 2.4 GHz TS-1685-D1531-32G/TS-1685-D1531-64G/TS-1685-D1531-64GR/TS-1685-D1531-128GR/TS-1685-D1531-64GR-550W/TS-1685-D1531-128GR-550W: Intel® Xeon® Processor D-1531, 6-core 2.2 GHz |
|---|---|
| System memory | Total DIMM slots: 4 Maximum memory: DDR4 128GB (with DDR4 32GB RDIMM x 4) Memory modules pre-installed: |
| Flash Memory | 512 MB DOM |
| Hard Drive Tray | 12 x 2.5"/3.5" HDD/SSD slot 4 x 2.5" SSD slot |
| Supported Hard Drive | SATA 6Gb/s HDD and SSD |
| M.2 Slot | 6 x M.2 2242/2260/2280/22110 SATA 6Gb/s SSD Note: 1. The M.2 SSD is not included as standard. 2. M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD. |
| LAN Port | 2 x 10GBASE-T ports, 4 x Gigabit ports |
| USB | Front: 1 x USB 3.0 port; Rear: 2 x USB 3.0 port |
| Audio Output | 1 x built-in speaker, 1 x 3.5mm Line-out jack Note: Only one of the above audio output ports can work at a time. If a speaker is connected, the sound will output through the speaker. |
| LED Indicators | System status, 2.5” SSD, M.2 SSD, 3.5” HDD |
| Buttons | System: Power button, Reset button, USB one-touch-backup button |
| Form Factor | Desktop |
| Dimensions (H x W x D) | 303.84 x 369.89 x 319.8 mm 11.96 x 14.56 x 12.59 inch |
| Weight | Net weight (NAS only): 13.39 kg/ 29.52 lb Gross weight (with packing and accessories): 15.96 kg/ 35.19 lb |
| Sound Level (dB)* | Sound Level (dB) Sound pressure (LpAm) (bystander position): 22.5 dB (with 12 x Seagate ST2000VN000 hard drive and 4 x SSD installed) |
| Power Consumption (W) | Sleep mode: 61.36 W In Operation: 127 W |
| Temperature | 0-40˚C |
| Relative Humidity | 5~95% non-condensing, wet bulb: 27˚C. |
| Power Supply | TS-1685-D1521-16G/TS-1685-D1521-32G/TS-1685-D1531-32G/TS-1685-D1531-64G/TS-1685-D1531-64GR/TS-1685-D1531-128GR: 100-240V~, 3-1.5A, 60-50Hz, 250W PSU TS-1685-D1521-32G-550W/TS-1685-D1531-64GR-550W/TS-1685-D1531-128GR-550W: 100-240V~, 3-1.5A, 60-50Hz, 550W PSU |
| PCIe Slot | Number: 3 Slot 1: PCIe Gen.3 x8 Slot 2: PCIe Gen.2 x4 Slot 3: PCIe Gen.3 x8 |
| Fan | System: 3 x 9.2cm fan (12V DC) CPU: 2 x 9cm fan |
| יצרן: | Qnap |
|---|---|
| כמות דיסקים : | 16 |
| תצורה : | Tower |
